How to disassemble Gateway MX (Model MA2A)

posted in: 5. Gateway | 29



In this guide I explain how to disassemble a Gateway MX (Model #MA2A) series laptop. To be precise, I’m taking apart a Gateway MX6650 model.

The main purpose of this repair is replacing the base cover.

In my case a piece of the base assembly where the right hinge connected broke off.

Let’s go through the disassembly process step by step. Before you start, turn off the computer, disconnect the AC adapter and remove the battery.

STEP 1.

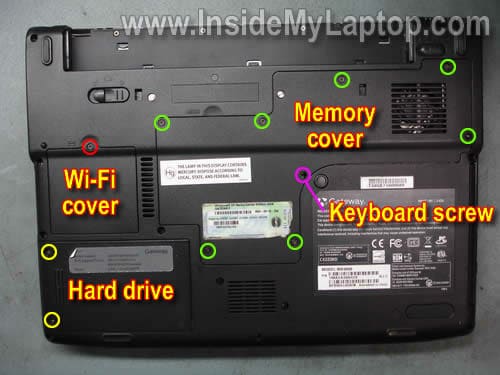

Remove two screws (yellow) securing the hard drive assembly.
Remove one screw (red) securing the wireless card cover.
Remove seven screws (green) securing the memory cover.

There is one screw on the bottom (pink) securing the keyboard. You can remove this screw now or in the step 8.

STEP 2.

Slide the whole hard drive assembly to the left to disconnect it from the motherboard.

Lift up and remove the HDD assembly.

STEP 3.

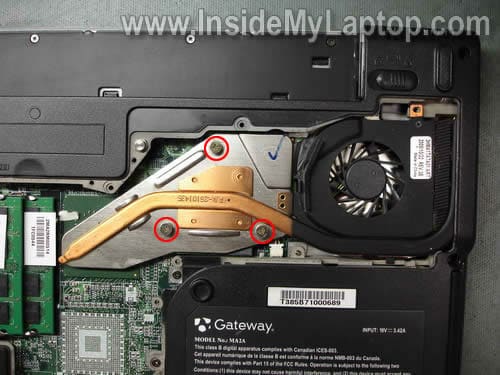

Loosen three screws securing the heat sink.

STEP 4.

Carefully lift up the heat sink assembly and disconnect the cooling fan cable from the motherboard.

STEP 5.

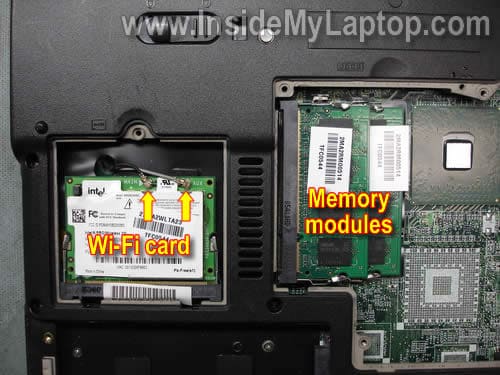

Remove both memory modules.

Disconnect two antenna cable from the wireless card.

STEP 6.

You remove the wireless card same way as the memory module.

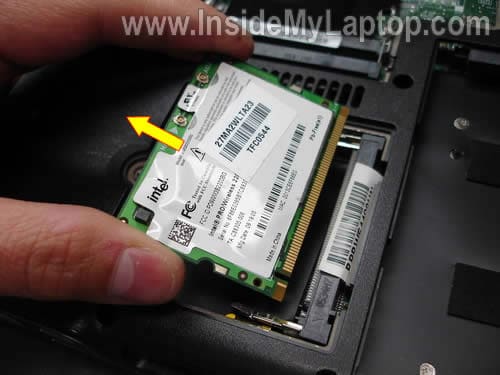

Spread metal latches on both sides and when the wireless card pops up at a 30 degree angle, pull the wireless card from the slot.

STEP 7.

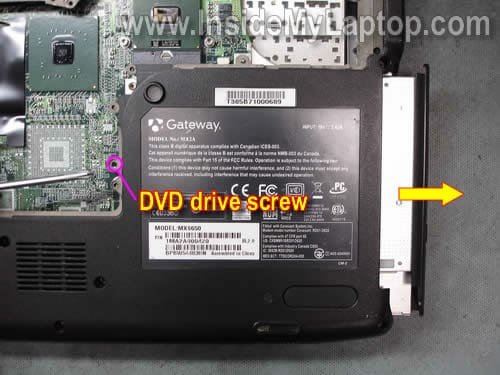

Remove one screw securing the CD/DVD optical drive.

Pull the CD/DVD drive to the right and remove it.

STEP 8.

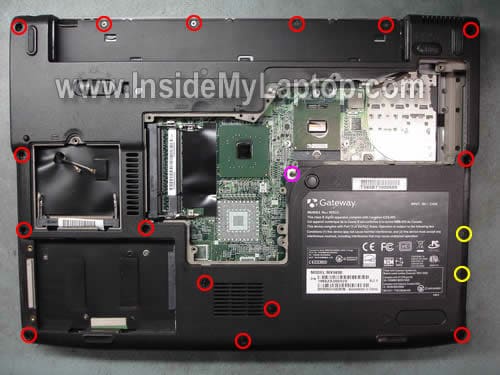

Remove all screws from the bottom of the laptop base.

Do not forget two screws (yellow) located in the CD/DVD drive compartment.

STEP 9.

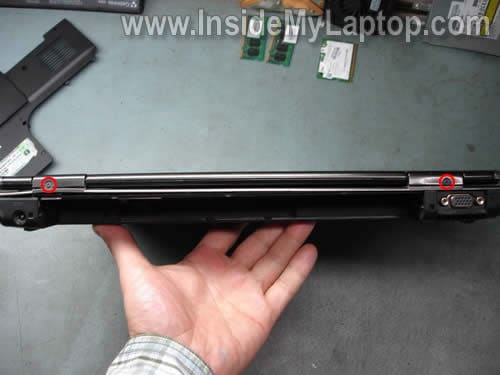

Remove two screws from the back side of the power switch cover.

STEP 10.

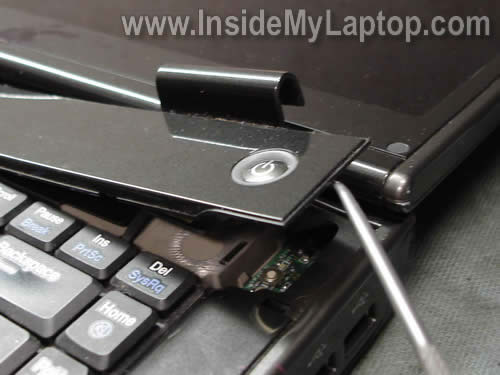

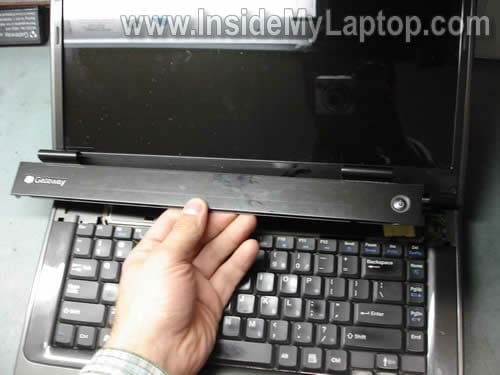

Carefully lift up the power switch cover with a screwdriver.

Continue removing the cover with your fingers.

STEP 11.

The power switch cover has been removed.

STEP 12.

Lift up the keyboard and place it upside down on the palm rest.

STEP 13.

Now you can unlock the keyboard cable connector.

After the connector is unlocked, you can pull the cable and remove the keyboard.

STEP 14.

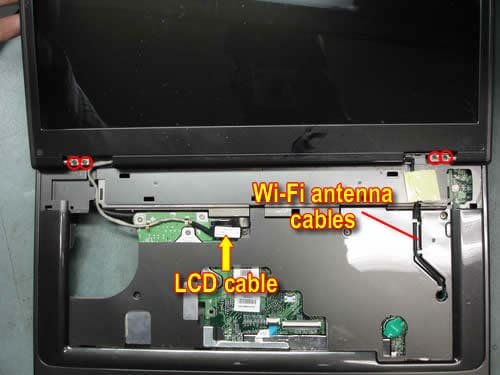

Disconnect the LCD cable connector from the motherboard.

Pull the wireless card antenna cables through the opening in the top cover.

Remove four screws securing the display assembly hinges.

STEP 15.

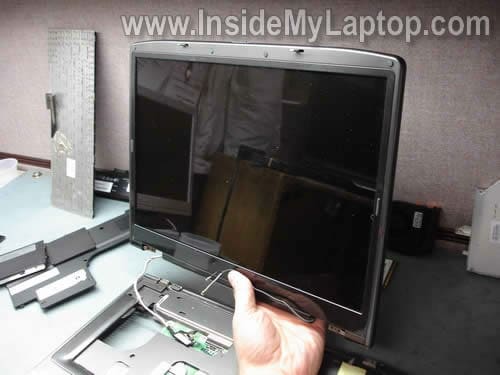

Remove the display panel assembly from the laptop.

Here’s how to remove the screen.

It’s not necessary to separate the display assembly from the base in order to replace the screen.

STEP 15.

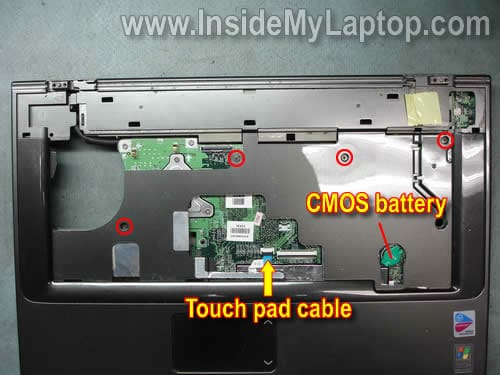

Remove four screws securing the top cover assembly.

Disconnect the touch pad cable from the motherboard.

The CMOS battery can be accessed and replaced in this step.

STEP 16.

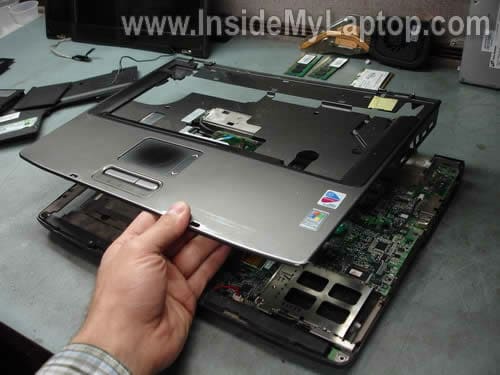

Carefully lift up and remove the top cover assembly.

STEP 17.

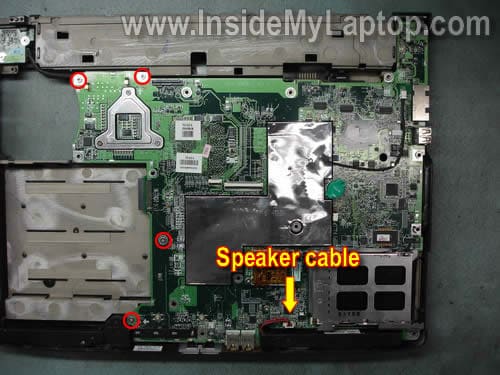

Disconnect the speaker cable from the motherboard.

Remove four screws securing the motherboard.

STEP 18.

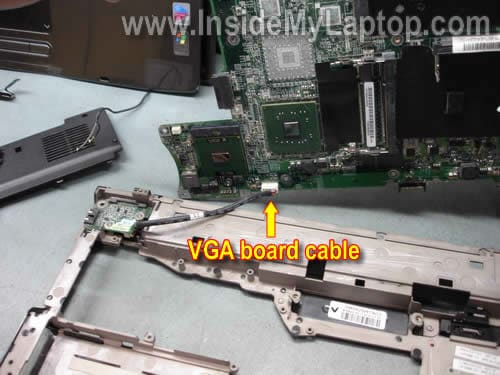

Carefully lift up the motherboard and disconnect the VGA board cable from the other side.

STEP 19.

There is nothing on this side of the motherboard except the CMOS battery.

STEP 20.

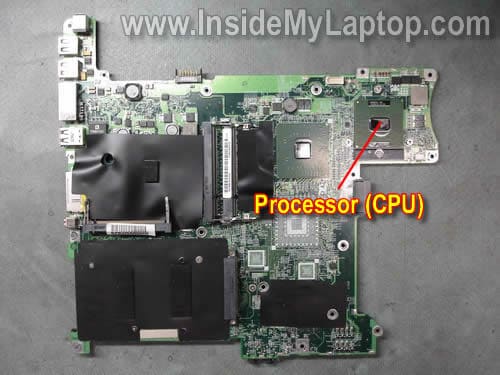

The processor (CPU) is located on the other side.

In order to remove the processor you have to unlock the socket.

STEP 21.

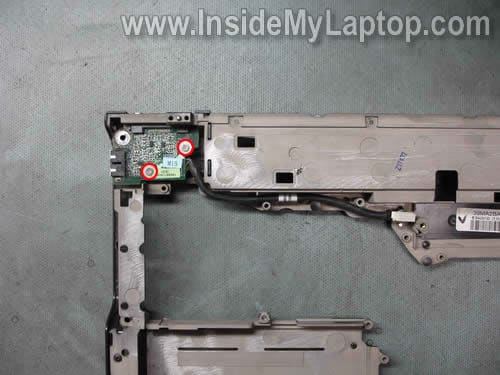

Remove two screws securing the VGA board.

STEP 22.

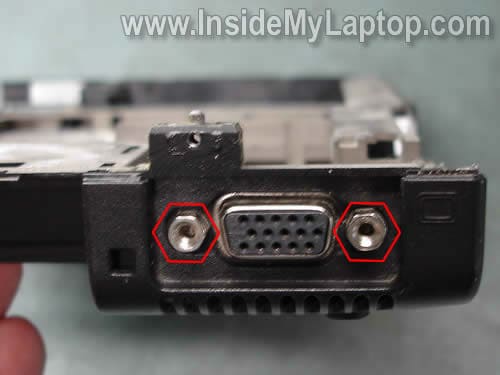

Remove two hex studs securing the VGA board on the back side of the base.

STEP 23.

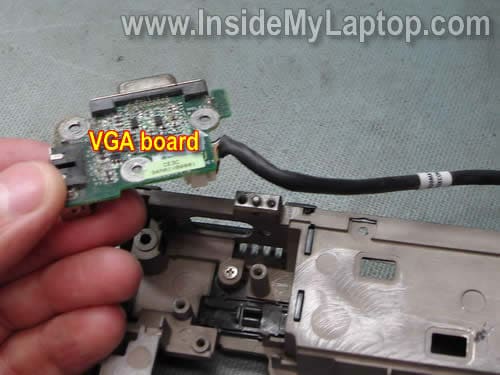

Remove the VGA board.

STEP 24.

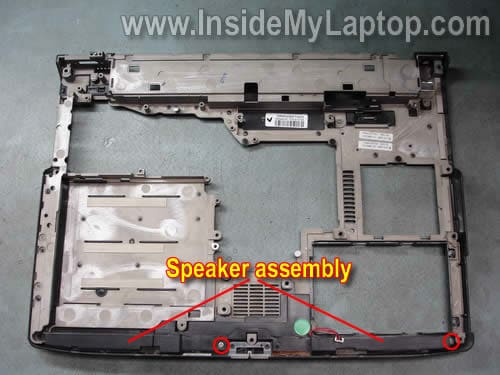

Finally, remove one screw securing the speaker cover assembly.

Remove the speaker cover assembly.

Now you can replace the damaged base cover with a new cover and assemble everything back together.
