How I fix flash drives with damaged USB ports

posted in: Miscellaneous Tips | 5
Flash drive with bent USB port

Today I show how I fix flash drives with damaged USB ports in order to recover the data. I show a few different damage scenarios and my way of fixing it.

If you have very important files on a damaged USB drive, you should use professional data recovery service instead of trying to fix it yourself. Just had to mention that.

Tools and supplies I used for this repair:

  • Hakko FX-951 soldering station with T15-J02 tip
  • Kester .40mm (.015″) rosin core solder
  • Amtech NC-559-V2-TF flux
  • AmScope 10X-20X microscope
  • Needle nose tweezers
  • Thin wire

Flash drive has a bent USB port

Someone bumped into this USB flash drive while it was plugged in. Right after the accident the flash drive stopped being detected by any computer. That is a cheap drive but the data on it is priceless.

If you look at the drive from the side you can clearly see the USB port not being straight and bent upwards.

USB port bent upwards

With naked eyes you cannot see what is wrong but if you look under a microscope, you can see the problem right away.

One of the soldering pads got lifted off of the circuit board and the trace between the pad and the circuit board got cracked. One of the pins on the USB port doesn’t make contact with the circuit board anymore. Can you see a gap between the first USB pin and the circuit board? Thats’s the problem!

This is USB VCC pin which supplies +5 volts DC to the circuit board.

Soldering pad got lifted off of the circuit board

After I looked at the drive at a different angle, I noticed that the second pad (Data -) also got separated from the circuit board.

The third (Data +) and forth (Ground) pads looked normal but just in case I checked continuity with a multimeter. Both tested fine.

Two soldering pads damaged

I was able to fix this USB flash drive in four steps. It was a temporary repair, just enough to make it work and recover the data off the USB drive.

STEP 1.
Using a soldering stating I unsoldered two damaged pads from the USB port pins.

Unsolder damaged soldering pads

STEP 2.
With the pads removed I got a clear view on the circuit board. I was able to trace where these pads should be connected on the board.

  • The first pad (+5V VCC) was connected to the resistor marked 1R5 (lower arrow).
  • The second pad (Data -) was connected to the round pad just above the pin (upper arrow).
Trace where damaged pads connected to circuit board

STEP 3.
I scraped off the protective coating from the round pad using a sharp needle nose tweezers. After the copper surface got exposed, I applied some fresh solder on the pad and two USB port pins.

Apply fresh solder

STEP 4.

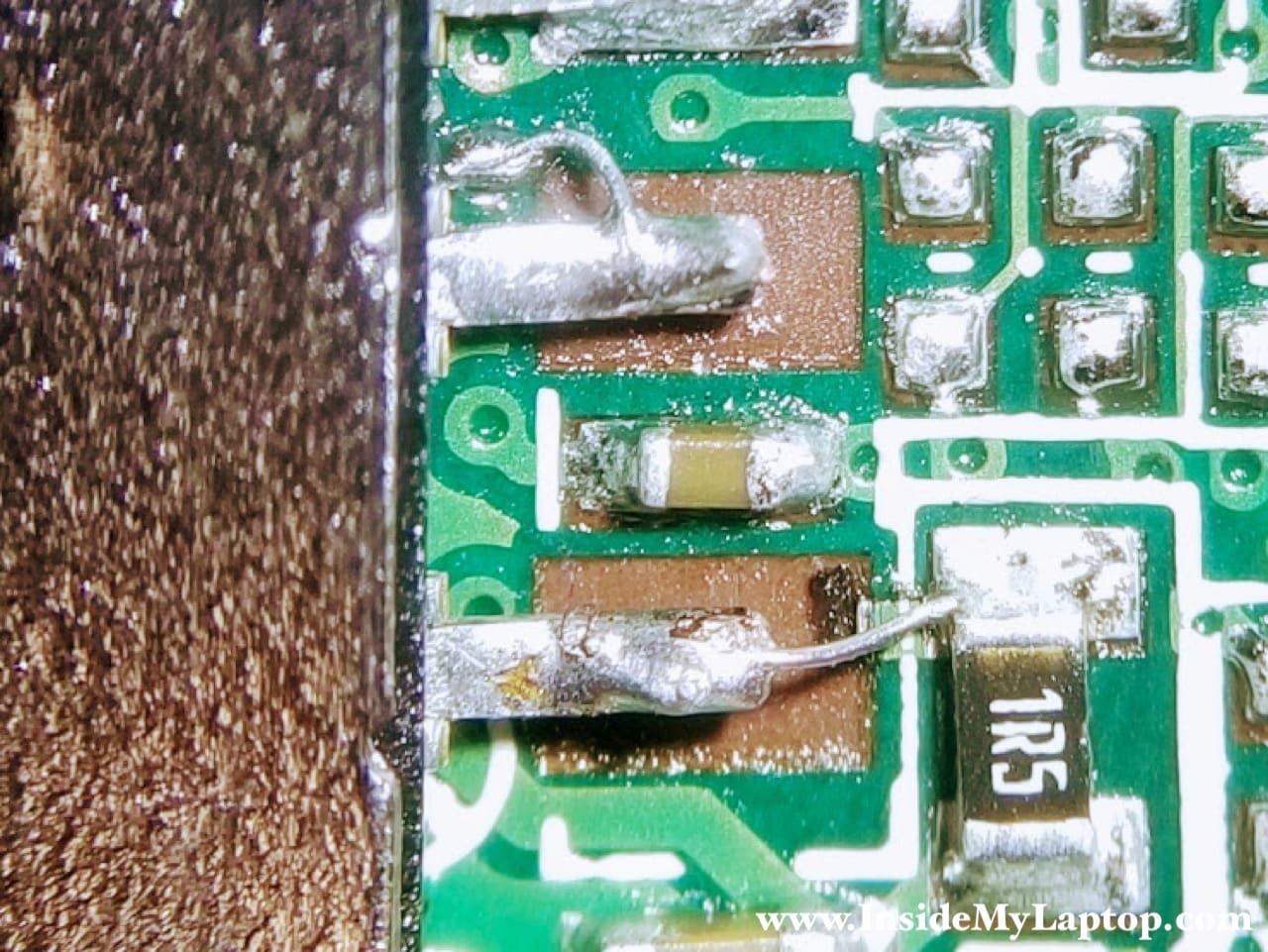

Finally, using a very thin wire I ran jumpers from both USB pins to the circuit board.

You definitely need a microscope, a good micro soldering station and steady hands for this kind of repair.

Solder wires from USB pins to circuit board

After the repair I plugged the USB drive into my computer and… Bingo!!! The blue LED turned on and started flashing. The USB drive mounted as normal and I was able to recover all valuable data off the drive.

That was just a temporary repair but enough to get access to the files.

USB flash drive fixed and being detected by computer

Flash drive USB port ripped off of the board

In this example I have a flash drive with the USB port ripped off completely. When a damage like that occurs, usually some traces on the circuit board are damaged too.

In this particular case only one soldering pad (+5V VCC) was missing and three other pads were intact.

The USB port ripped off of the flash drive circuit board. One soldering pad missing.

In this similar example there are three soldering pads missing.

The USB port ripped off of the flash drive circuit board. Three soldering pads missing.

In order to fix a flash drive like that, I solder a new USB port (borrowed from another drive) and run jumpers to the damaged traces. For attaching a new USB port I use the same technique as for soldering a DC power jack.

New USB port soldered to the flash drive and damaged traces temporarily repaired.

Flash drive broken in half

Here’s a nightmare scenario for data recovery – a USB flash drive broken in half. Here’s one I just got on my bench. As you see the USB port ripped off completely, traces are damaged and… the logic board is broken in half.

It’s very difficult to recover data from a drive like that but in this particular case I got lucky.

Using a 10x microscope I was able to figure out where the damage occurred and solder jumpers from one piece of the board to another.

Connecting traces on one side of the damaged USB flash drive.

I did the same on the other side of the board.

Connecting traces on the other side of the damaged USB flash drive.

Finally, I soldered a USB cable to the pads and successfully recovered all the data.

Data recovery from USB flash drive broken in half.
