How to remove screen from Gateway MT6704

posted in: 5. Gateway | 43

Remove all screw covers from screen bezel

In this guide I will remove a broken LCD screen from a Gateway MT6704 (Model MA7) laptop and replace it with a new one.

As I mentioned in my previous article, where I was replacing the keyboard



, this guide will work for many other Gateway MT6700 models.

Before you start, turn off the computer, unplug the power adapter and remove the battery.

You’ll find six rubber screw seals on the display bezel.

Remove all seals with a sharp object (picture above) and also remove all six screws found under the seals.

Remove screws from bezel

Start separating the bezel from the display cover with your fingers. A piece of soft plastic (I’m using a guitar pick) will help you to separate two parts without breaking them.

Separate LCD bezel from cover

Continue removing the bezel on the top of the display assembly.

Continue removing screen bezel

The bezel has been removed.

LCD screen bezel removed

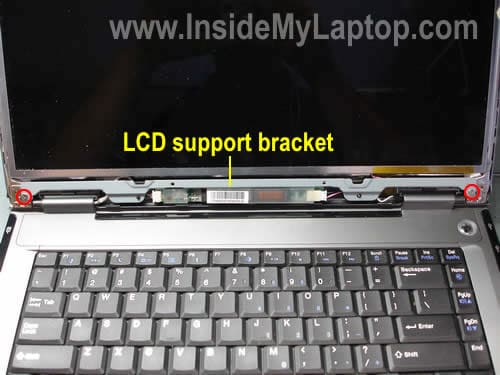

As you see on the picture below, a part of the inverter is covered by the LCD support bracket.

This bracket has to be removed first.

Remove two screws securing the support bracket and after that remove it.

Remove LCD support bracket

Now you can access the inverter board which is glued to the display cover. Remove it with a caution.

I will not be removing the inverter in this guide, it’s not necessary for replacing the screen. But I have to unplug one cable on the right side of the board.

This cable goes to the backlight lamp inside the screen.

Disconnect cable from screen inverter

Carefully separate the LCD panel from the cover and place it the front side down on the keyboard.

Remove display assembly

Now you can access the video cable on the back.

Video cable connected to LCD screen

The video cable connector is secured by clear tape.

Remove the tape and unplug the video cable.

Unplug video cable from LCD screen

Now you can remove the screen. As you see, the mounting brackets are still attached to both sides.

Remove LCD screen assembly

Remove two screws securing the mounting bracket.

Remove screws from screen bracket

Remove one more bracket from the other side.

Screen bracket removed

I found a sticker on the back side of the screen. Apparently, the number above the barcode is the part number used by Gateway.

I was able to find a new replacement screen using this part number.

LCD screen part number

The broken LCD has been removed and I’m ready to install a new one.

Laptop with screen removed

For complete laptop disassembly instructions please take a look at this guide. It’s a different Gateway model but the body is very similar.
