How to replace screen on Sony Vaio PCG-K

posted in: 7. Sony | 20

Open display Sony Vaio PCG-K laptop



In the following guide I will open up the display panel to remove and replace the screen on a Sony Vaio PCG-K series laptop.

As an example I’ll be taking apart a Sony Vaio PCG-K33 model. These instructions should work for many other models in the PCG-K line.

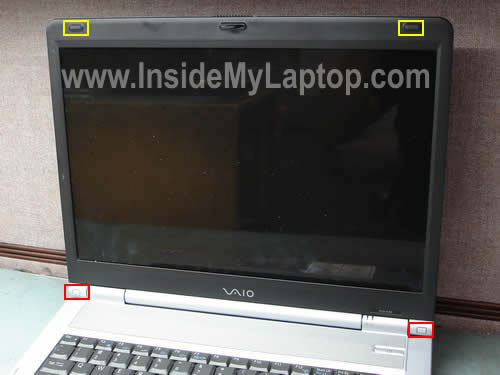

There are four screws securing the display bezel (mask) to the LCD cover. These screws are hidden under four rubber covers. Two black covers on the top of the bezel (marked with yellow squares) and two white covers on the bottom (marked with red squares).

Remove two white covers on the bottom.

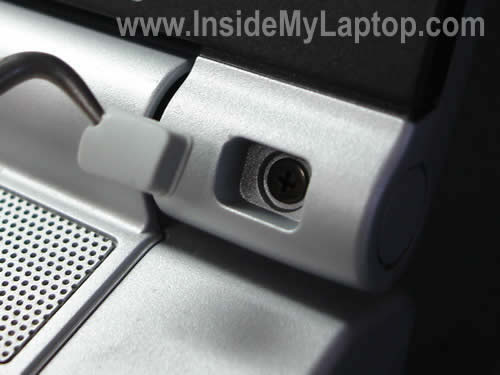

Remove screw cover on bottom

Remove two black covers on the top.

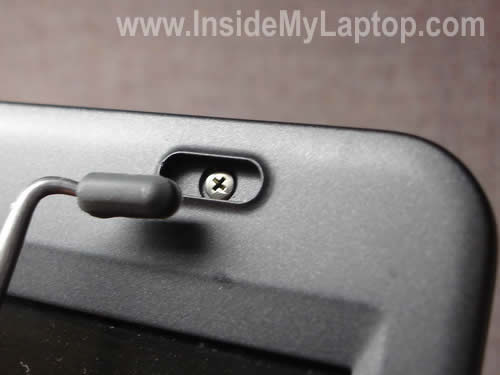

Remove screw cover on top

Remove four screws found under the covers.

Now you can start removing the display bezel as it shown on the picture below.

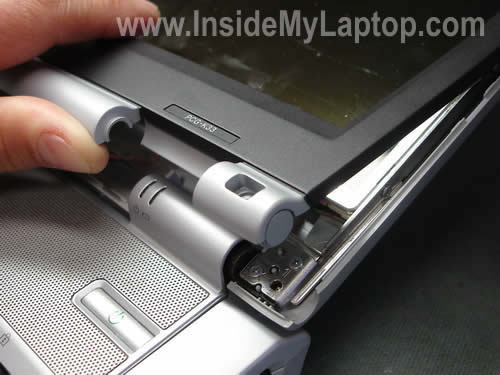

Carefully release the bezel from under the hing cover with your fingers.

Separate screen bezel

Continue removing the display bezel.

Remove LCD screen bezel

Finally, the bezel has been removed.

Dispaly bezel removed

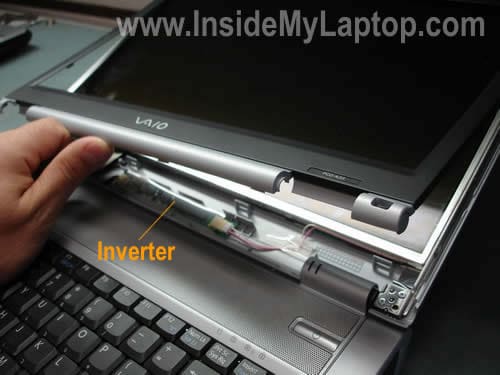

The screen inverter is mounted on the bottom side of the display cover.

There are no screws securing the inverter in this model, it’s simply glued to the cover.

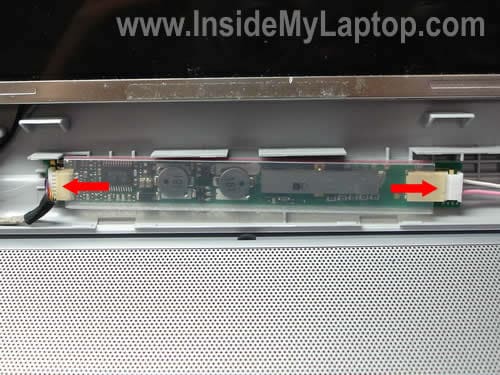

Carefully unplug cables from both sides of the inverter.

Disconnect screen inverter

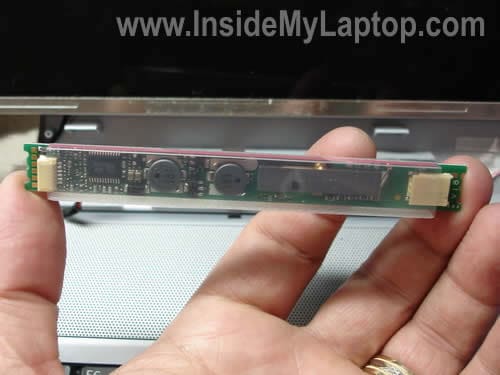

The inverter board has been removed.

Screen inverter removed

Now I’m going to remove the LCD screen.

Remove six screws securing the display assembly to the cover.

Remove screws from LCD screen

Now you can separate the LCD panel from the cover and access the video cable on the back.

The video cable has to be disconnected.

Open display assembly

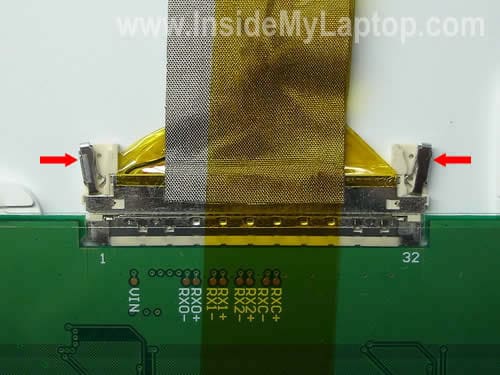

Remove the yellow tape securing the connection.

Carefully push on latches securing the connector and pull the cable out.

Disconnect LCD cable from screen

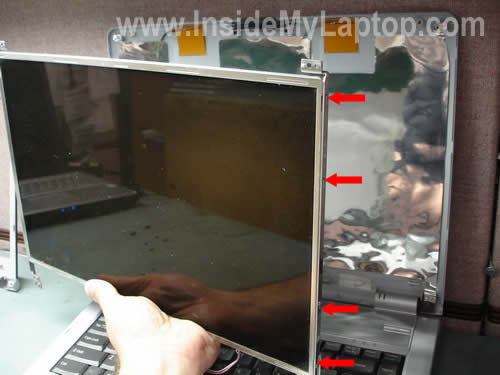

After that you can separate the LCD panel from the cover.

As you see on the picture below, the mounting brackets are still attached to the screen by four screws on each side.

Finally, you can replace the failed or damaged screen with a new one and assemble everything back together.

Remove brackets from screen
