How to disassemble HP ENVY m4

posted in: 3. Compaq & HP | 18

HP ENVY m4 disassembly

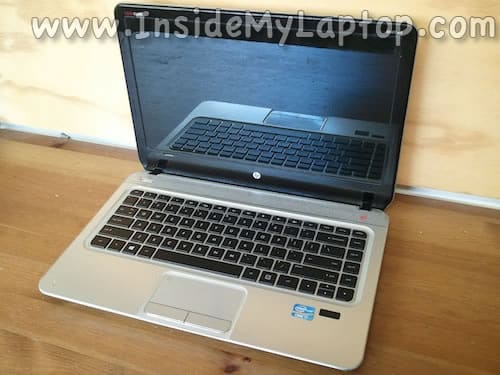

In this guide I will disassemble a HP ENVY m4.

The full model number is: m4-1015dx.


Turn it off, unlock and remove the battery.

Remove battery


Remove one screw securing the hard dive/memory cover.

Push the battery latch all the way to the left (green arrow). The cover will slide down a little bit (yellow arrow).

Now you can separate the cover from the case and remove it.

You’ll have to apply some reasonable force to remove the cover.

HDD RAM cover

Under the cover you will find the hard drive and both RAM modules.

This laptop can handle up to 16GB (2x8GB) DDR3-12800 SODIMM RAM modules.

Memory and hard drive

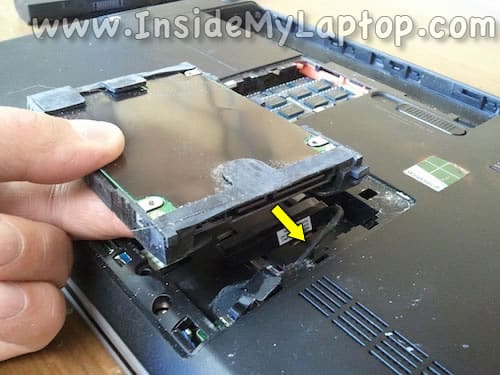

Lift up the hard drive and disconnect the SATA cable.

Upgrading this regular 2.5″ hard drive to a 2.5″ solid state drive will speed up the laptop significantly.

Disconnect hard drive


Between the optical drive and RAM modules there is another cover. Remove it.

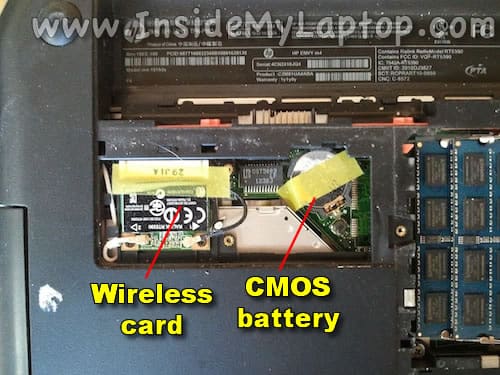

Under the cover you will find the wireless card and CMOS battery.

Wireless and CMOS batteryt

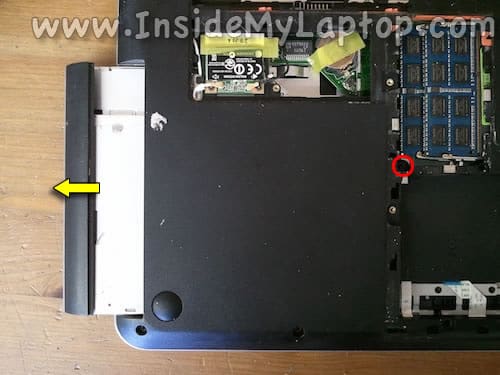

Remove one screw securing the optical drive.

Pull the drive to the left and remove it.

Remove optical drive


Disconnect both antenna cables from the wireless card.

Disconnect antenna cables

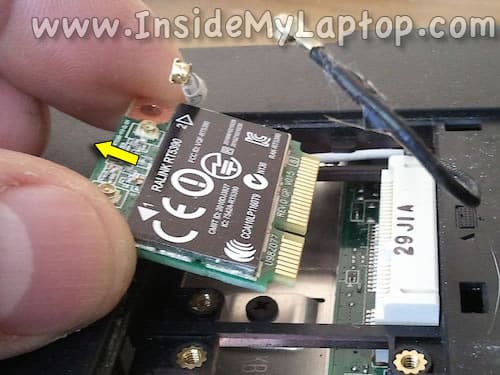

Remove two screws securing the wireless card and pull it out.

Remove wireless card


Remove two screws securing the keyboard.

Keyboard screws

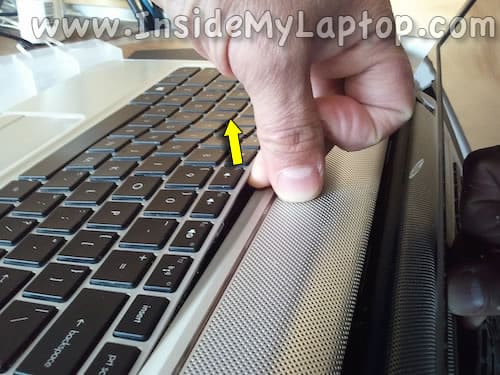

In order to remove the keyboard you’ll have to push on the back with a plastic stick (or something else).

You will find an opening in the case close to the CMOS battery.

Push on keyboard back

STEP 10.

When you push on the back of the keyboard, the front will separate a little bit from the top cover.

Insert your fingers under the keyboard and continue removing it from the case.

Lift up keyboard

STEP 11.

Separate the keyboard from the top cover and turn upside down on the palm rest.

Continue removing keyboard

STEP 12.

Now you can access and disconnect two cables.

Keyboard cables

Here’s how to disconnect the data cable.

Lift up the right side of the connector retainer with your fingernail. It will open up at a 90 degree angle (green arrow).

Pull the cable out of the connector (yellow arrow).

Unlock data cable

Disconnect the backlight cable the same way.

Lift up the retainer and pull the cable.

Unlock backlight cable

STEP 13.

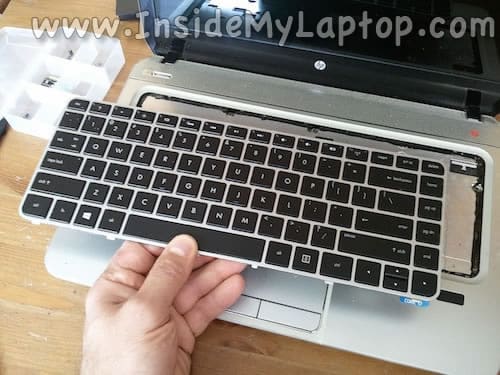

Remove the keyboard completely.

Remove keyboard

STEP 14.

Remove screws from the bottom of the laptop.

You will find two screws under rubber feet (green circles).

Remove bottom screws

Here’s how to remove the foot. It’s glued to the case with sticky tape.

Lift up feet

STEP 15.

Remove seven screws securing the top cover/palm rest assembly.

Disconnect the touchpad cable.

Disconnect top cover

STEP 16.

Start separating the top cover from the bottom case.

I’m using a guitar pick for that.

Separate top cover

STEP 17.

Continue separating the top cover in the palm rest area.

Lift up palm rest

STEP 18.

Remove the top cover assembly.

Remove palm rest

On the bottom side of the cover you can access the finger scanning device and touchpad.

Finger scanner and touchpad

STEP 19.

Disconnect the following cables:
1. Display cable.
2. Speaker cable.
3. Optical drive cable.
4. Power connector cable.

Disconnect motherboard

Here’s how to unplug the display and optical drive cables. Lift it up by the black belt.

Unplug display cable

Here’s how to unplug the speaker cable. Do not pull by the wires.

Unplug it by the connector edges.

Unplug speaker cable

Here’s how to unplug the power connector (DC jack) cable.

Unplug power connector cable

STEP 20.

Remove three screws securing the motherboard.

Motherboard screws

Before you can remove the motherboard from the case, make sure the hard drive SATA cable is disconnected.

Unplug the cable from the motherboard and remove it.

Disconnect hard drive cable

STEP 21.

Start removing the motherboard as it shown on the following picture.

Lift up motherboard

STEP 22.

The motherboard has been removed from the bottom case.

Remove motherboard

STEP 23.

On the other side you can access the cooling fan assembly (fan and heat sink).

Cooling fan

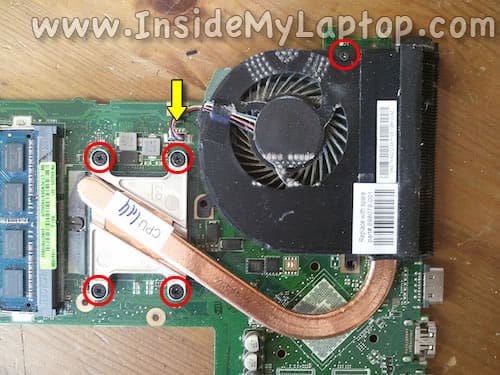

In order to remove the cooling assembly you’ll have to remove five screws and disconnect the cable.

After that you should be able to lift up and separate the assembly from the motherboard.

Remove fan assembly

In HP ENVY m4 laptop the power connector is attached to a cable.

In a case of failure it can be easily replaced.

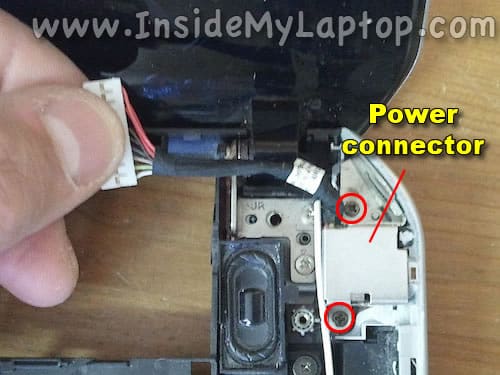

In order to remove the connector you’ll have to remove two screws securing the shield.

Power connector
