Taking apart Acer Aspire S3-391-6497

posted in: 1. Acer | 1

Acer Aspire S3-391-6497 disassembly



In this guide I will be taking apart an Acer Aspire S3-391-6497 Ultrabook.

I will show how to remove the bottom cover in order to access the cooling fan, SATA hard drive, mSATA SSD drive and other internal components.

Make sure the laptop is turned off.

STEP 1.

Remove all marked screws from the bottom cover.

Bottom screws

STEP 2.

Separate the bottom cover from the rest of the laptop and turn is upside down on the table.

Remove bottom cover

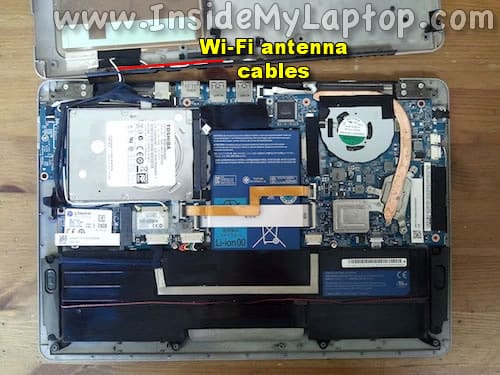

The Wi-Fi antennas are built into the bottom case.

Be careful, the antenna cables still connected to the Wi-Fi module.

Bottom cover removed

Before you touch any internal components it’s a good idea to disconnect the battery.

Unplug the battery connector from the motherboard by the edges.

Disconnect battery

STEP 3.

Remove tape securing Wi-Fi antenna cables.

Un-route wireless antennas

STEP 4.

Unplug both antenna cables from the Wi-Fi module.

Now you can remove the bottom cover completely.

Disconnect wireless antennas

STEP 5.

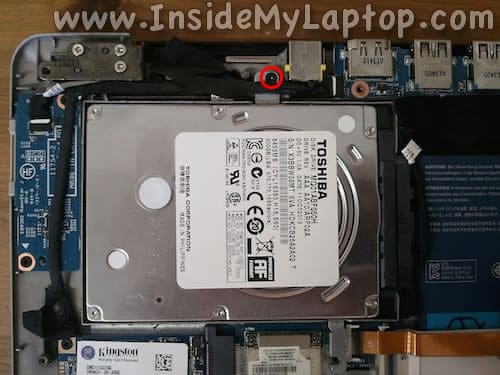

Remove one screw securing the SATA hard drive.

Remove hard drive screw

STEP 6.

Lift up the hard drive from the laptop and move it away from the battery.

Disconnect the SATA cable.

Now the hard drive can be replaced or upgraded if necessary.

Disconnect hard drive

Acer Aspire S3 series laptop comes with a 24GB mSATA (mini PCIe form factor) drive installed.

This drive allows the laptop to use Intel Rapid Start Technology which enables systems to quickly resume from deep sleep.

If you manually reinstalled Windows OS on the main SATA hard drive, you’ll have to configure the mSATA drive to work with Intel Rapid Start Technology.

SSD HDD

STEP 7.

When the bottom cover is removed, you can easily access the cooling module.

The cooling fan attached to the heat sink.

In order to remove the cooling module you’ll have to remove three heat sink screws and disconnect fan cable from the motherboard.

Cooling fan assembly

STEP 8.

The DC power jack attached to a cable. It’s not soldered to the motherboard.

DC power jack
