How to disassemble Dell XPS 17 L702X

posted in: 4. Dell | 3

Dell XPS 17 L702X disassembly



In this guide I show how to take apart a Dell XPS 17 L702X.

I will remove the bottom cover in order to access the main internal components.

Before you start, make sure it’s turned off and battery removed.

STEP 1.

Remove the service cover located on the bottom. It’s secured by one screw.

Service cover screw

STEP 2.

Under the service cover you can access the hard drive and both RAM modules.

Remove service cover

STEP 3.

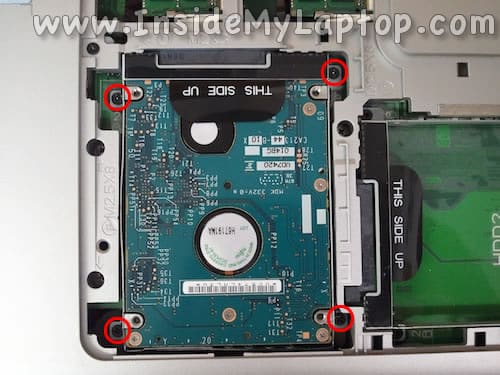

Remove four screws securing the primary hard drive caddy.

HDD screws

STEP 4.

Lift up the back side of the drive and disconnect it from the motherboard.

Remove the hard drive from the laptop.

Remove hard drive

STEP 5.

In my model I didn’t have the second hard drive installed.

If you do, remove it the same way as the first one.

Remove second hard drive

STEP 6.

Remove one screw securing the optical drive.

Pull the optical drive to the left and remove it from the case.

Remove optical drive

STEP 7.

Remove three screws securing the palm rest assembly.

Palm rest screws

STEP 8.

In the optical drive bay you will find an opening where you can push on the back side of the palm rest.

Push on palm rest

STEP 9.

When you push on the back side, the palm rest will separate from the bottom cover a little bit.

Palm rest separated

STEP 10.

Continue separating the palm rest from the bottom with your fingers.

Also, you can use a guitar pick (or any other piece of plastic) as a case opener.

Lift up palm rest

STEP 11.

Lift up the palm rest assembly.

Be careful, there are two cables connecting it to the motherboard.

Palm rest cables

STEP 12.

Turn the palm rest upside down.

Now you can access the trackpad and power button cable connectors and unlock them.

Disconnect two cables

STEP 13.

Here’s how to unlock both connectors.

Lift up the retainer with your fingernail. It will pop up at a 90 degree angle.

Pull the cable from the connector.

Unlock trackpad connector

STEP 14.

Remove the palm rest assembly from the laptop.

On the back side you can access the trackpad and power button board.

Bottom side of palm rest

STEP 15.

Lift up the keyboard and place it upside down on the top cover.

Lift up keyboard

STEP 16.

Before you ┬ácan remove the keyboard it’s necessary to disconnect the data and backlight cables.

Access keyboard connector

STEP 17.

Unlock both connectors the same way as explained in the step 13.

Disconnect keyboard cables

STEP 18.

Remove two screws securing display hinges on the bottom .

Hinge screws on bottom

STEP 19.

Now it’s necessary to disconnect the display cables and wireless card antennas.

Display cables

STEP 20.

Disconnect two display cables.

Unplug display cables

STEP 21.

Unplug both antenna cables from the wireless card.

Un-route all antenna cables from the to guided path on the top cover.

Disconnect wi-fi antennas

STEP 22.

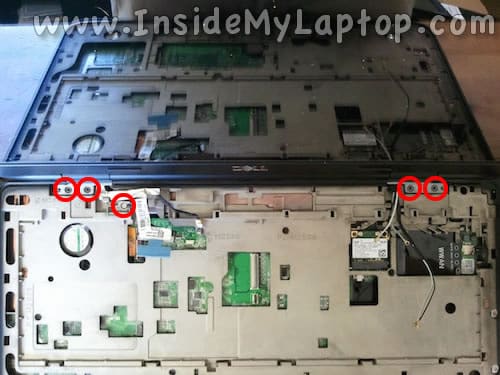

Remove four screws securing the display hinges and one ground screw.

Remove hinge screws

STEP 23.

Lift up the display assembly and separate it from the laptop base.

Remove the display assembly.

Remove display assembly

STEP 24.

Remove all screws from the bottom.

Remove bottom screws

STEP 25.

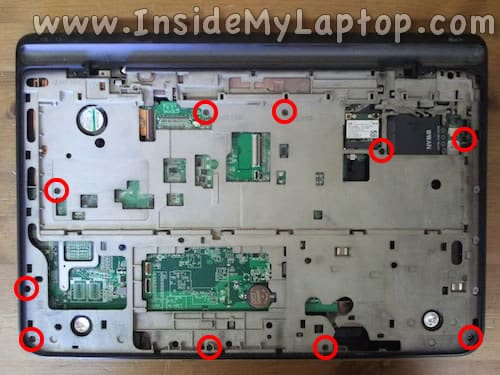

Remove all screws securing the top cover.

Remove top cover screws

STEP 26.

Disconnect the subwoofer cable.

Disconnect subwoofer cable

STEP 27.

Now you should be able to lift up and separate the bottom cover from the rest of the laptop.

NOTE: the motherboard secured to the top cover.

It is NOT necessary to remove the display assembly as shown in steps 18-23 in order to remove the bottom cover. You can do it while the display is still attached to the laptop.

Lift up bottom cover

STEP 28.

Remove the bottom cover.

Remove bottom cover

STEP 29.

The bottom cover has been removed.

Top cover removed

STEP 30.

Remove two screws securing the cooling fan.

Unplug the fan cable from the motherboard.

Disconnect fan

STEP 31.

Remove the cooling fan.

It’s ready for cleanup or replacement.

Remove fan

STEP 32.

Remove one screw securing the power connector (DC jack).

Unplug the power connector cable from the motherboard.

Disconnect power connector

STEP 33.

Now you can remove the power connector and replace it with a new one if necessary.

Remove power connector

For more detailed disassembly instructions you can follow instructions in the official service manual for Dell XPS 17 X702L.
