Replacing screen on Dell Inspiron N5010

posted in: 4. Dell | 3

Cracked screen on Dell Inspiron N5010



In this guide I show how to remove and replace damaged screen on Dell Inspiron N5010 or M5010.

In my case the laptop was dropped and the screen got cracked.

First of all, make sure it’s turned off and remove the battery.

Remove battery

STEP 1.

Insert fingers under the bezel on the top of the display assembly.

Wiggle the bezel and start separating it from the rest of the display assembly.

Separate screen bezel

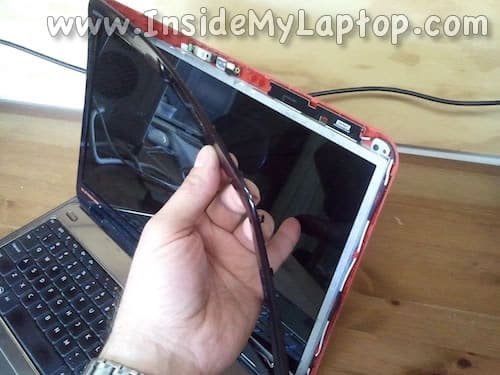

STEP 2.

Continue removing the bezel on both sides and bottom.

Continue removing bezel

STEP 3.

The display bezel has been removed.

Screen bezel removed

STEP 4.

Remove two screws securing the screen to the top of the back cover.

Remove screws from top

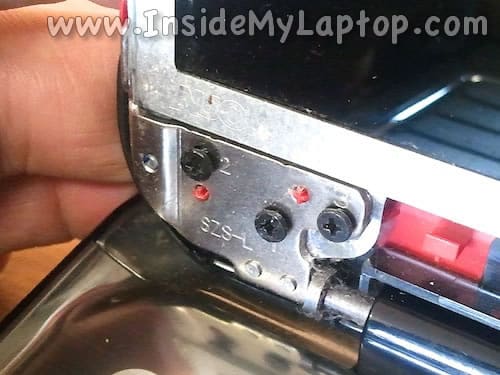

STEP 5.

Loosen three screws (do not remove completely) on the left hinge.

Loosen left hinge

STEP 6.

Loosen three more screws on the right hinge.

Loosen right hinge

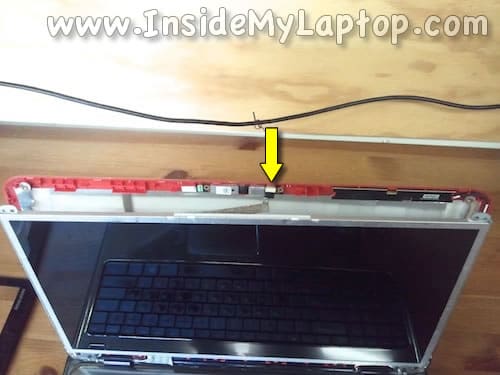

STEP 7.

Separate the screen from the back cover a little bit so you can access and disconnect the webcam cable.

Web camera connected

STEP 8.

Unplug the cable from the webcam.

Disconnect webcam cable

STEP 9.

Remove two screws securing the screen to the right mounting bracket.

Screws on right hinge bracket

STEP 10.

Remove two more screws from the left bracket.

Screws on left hinge bracket

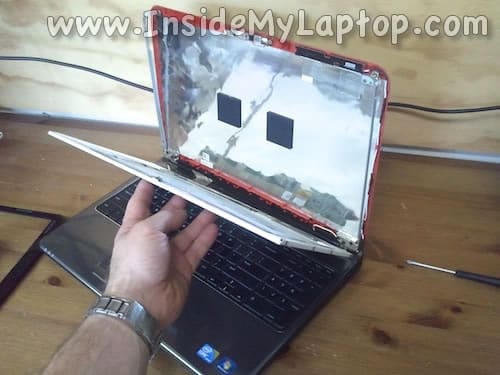

STEP 11.

Separate the screen from the back cover and place it on the keyboard.

Separate screen from cover

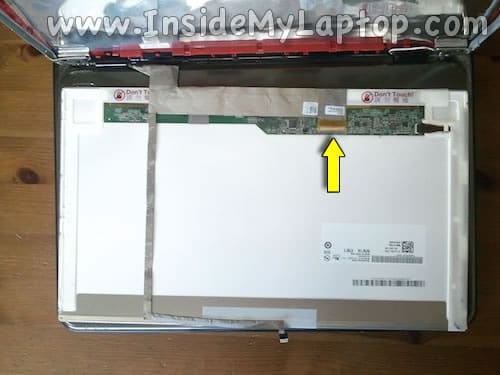

STEP 12.

The display cable is glued to the back of the screen.

Access display cable

STEP 13.

Carefully separate the cable from the back.

Separate display cable from screen

STEP 14.

Remove clear tape securing the connection and unplug the cable.

Disconnect display cable from screen

STEP 15.

Now you can remove the damaged or failed screen from the laptop and replace it with a new one.

Assemble everything back together following all disassembly steps in the reverse order.

Remove damaged screen

When you search for a new replacement screen you can use the model number from the back of the original part.

In my Dell Inspiron N5010 this part number: B156XW02 v.2

Replacement screen for Dell Inspiron N5010

For the keyboard and hard drive removal instructions check out my previous guide.
