How to access internal RAM in Dell Latitude D520

posted in: 4. Dell | 23



In this guide I explain how to access the memory module installed into the internal slot on a Dell Latitude D520 laptop.

You can use this guide for removing/replacing the keyboard or replacing/upgrading both memory (RAM) modules.

Dell Latitude D520 has two RAM slots. One of them can be easily accessed through the door on the bottom. The second one is hidden under the keyboard.

Before you start the disassembly process, don’t forget to turn it off and remove the battery.

On the following picture you can see the memory module installed into the external slot located on the bottom.

We’ll start removing the keyboard with removing the bezel.

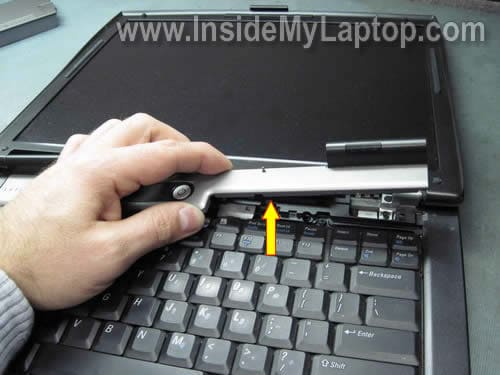

Insert a flat head screwdriver under the right side of the bezel and carefully lift it up.

Continue removing the keyboard bezel with your fingers.

Now you can remove two screws securing the keyboard.

Carefully lift up the keyboard and place it upside down on the palm rest.

Under the keyboard you get access to the cooling fan.

If the cooling fan looks dirty, you should clean it up.

In order to access the memory module installed in the internal slot, you’ll have to turn the keyboard as it shown on the picture below.

It’s not necessary to disconnect the keyboard from the motherboard.

To remove the memory module simply spread latches on both sides until the module pops up at a 30 degree angle.

Now you can pull the memory module from the internal slot and replace it with a new one if needed.

Dell Latitude D520 can take up to 4GB RAM total. You can install up to 2GB RAM sticks into each slot.

Dell recommends using PC2-5300 DDR2-667 200pin SDRAM SODIMM modules.

It’s possible to use faster memory modules. For example PC2-6400 DDR2-800 should work fine, but they will clock down and run at PC2-5300 speed.

It’s not necessary to change any settings after upgrading laptop memory. The laptop will detect and configure it on its own.
