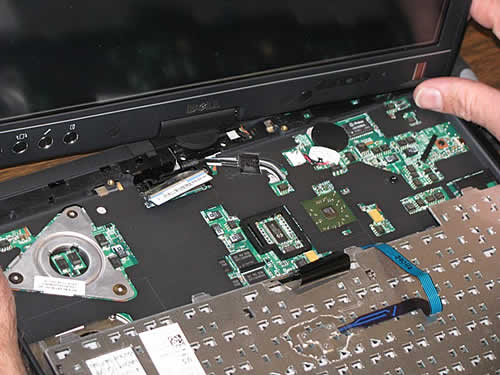

This guide will help you to replace the display panel assembly on a Dell Latitude XT tablet computer. The display panel is not just the screen as it was named by the author, it’s the whole upper part of the tablet.
A typical display panel for a tablet consists of the following parts: LCD screen, inverter board, video cable, wireless antennas, button board, top cover, LCD mask and hinge.
Update: the original link removed because the disassembly guide is gone. Instead, you can use the official Dell service manual for Dell Latitude XT laptop. The disassembly instructions published in the Adding and Replacing Parts chapter.
Did I help you $ave some money? Please consider making a donation.
THANK YOU!
September 19th, 2010 at 12:43 am
Hiya, can someone help me and guide me as to where i can obtain a replacement hinge for my Latitude XT model. Its the single rotating hinge in the middle of the lap top…
mine snapped from oneside as i was closing the laptop…
Any help, would be grateful thanks
December 29th, 2010 at 6:54 pm
Broken Link Allert: The link refered above in the first sentence is broken; show a 404 error.
December 29th, 2010 at 9:46 pm
Mark,
I removed the broken link. Thank you.
You can use this manual for Dell Latitude XT laptop.
January 11th, 2011 at 9:55 am
Is there any way to convert from cathode backlight to led backlight? I had to replace broken display and could not put my hands on cathode variant so i bought led backlight display. While on battery mode it works fine but while connected to the power supply it tries to find inverter to power up the backlight and obviously fails.
January 13th, 2011 at 9:19 am
Samael,
What??? You’ve replaced a regular LCD screen with a LED backlit screen and it works on battery power? Are you kidding me?
February 1st, 2011 at 10:22 am
I would be very interested in seeing a follow up on the CCFL to LED backlight conversion- I too would like to do the same on a aspire 9410, which has a re-occuring problem with the backlighting
ONE YEAR WARRANTY
February 1st, 2011 at 11:30 am
CAMXposure,
I don’t think it’s possible. In order to support LED screens, the motherboard has to be designed for that.
If you have a regular CCFL screen in your laptop, you cannot replace it with a LED screen. Unless your motherboard has built in support for both screens.
Let me know if I’m wrong.
