In this guide I explain how to replace LCD screen on an Asus K53U.
This is my second guide for this model. In the first guide I explained how to disassemble Asus K53U body
This guide might fit some other Asus models. If it works for you please mention the model number in the comments.
Make sure the computer is turned off and battery REMOVED before you start taking it apart.
There are two rubber screw covers located in the lower left and right corners of the display bezel.
Remove both screw covers with a sharp object. Glue them (they have stick tape on the bottom) somewhere on the bezel so covers don’t get lost during the disassembly process.
Remove both screws found under the covers.
Stat separating the bezel from the display back cover.
Insert your fingers under the bezel. You’ll have to wiggle the bezel in order to unlock hidden latches securing it to the display back cover.

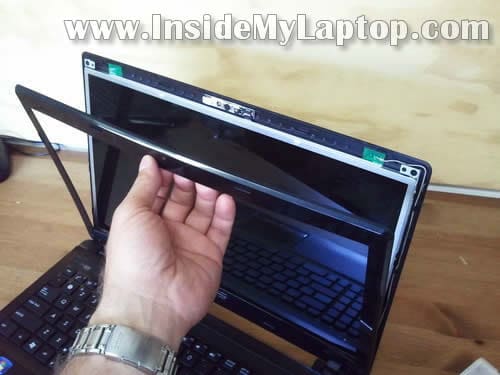

Also the guitar pick (or any other piece of plastic) can be very useful. Insert it between the bezel and back cover and slowly move along the side.
When the bezel separated from the back cover on the top, move to the lower part.
Insert a sharp object under the hinge cover and lift it up.
The hinge cover is part of the bezel.

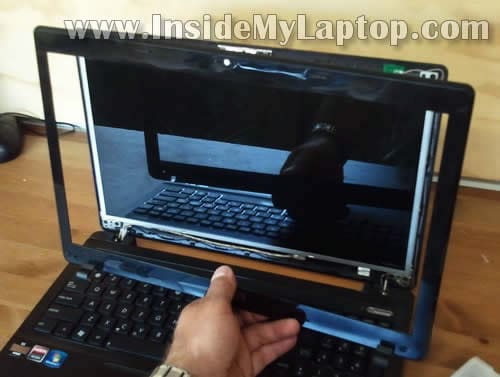

Remove the screen bezel.
Remove two screws securing the LCD mounting brackets on the top.
Loosen (do not remove completely) four screws securing the mounting brackets on the bottom.
Now you should be able to separate the LCD from the back cover just enough to remove screws on the side.
Remove four screws on the right side.
Remove four more screws on the left side.
Place the LCD screen face down on the palmrest.
Now we’ll have to disconnect the video cable.

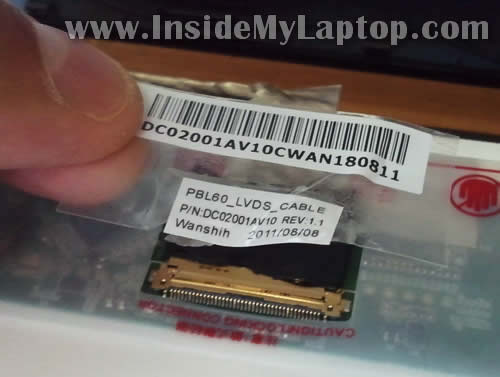

Remove clear tape securing the video cable connector.
Unplug the video cable.
Remove the laptop screen. Now it’s ready for the replacement.
The best way to find a new compatible LCD is searching by the model number.
In my Asus K53U I had the following screen installed: N156BGE-L21 Rev. C1.
