Full disassembly of Acer Aspire R 14 (R5-471T-71W2) Model N15P6.

Today I will walk you through a full disassembly of an Acer Aspire R 14 (R5-471T-71W2) model N15P6 laptop. It’s likely this disassembly guide will work for some other models in the Acer Aspire R 14 line. If it works for you, I would appreciate if you can mention the laptop model number in the comments area after this post.

In the first part of the guide I will take apart the laptop base. In the second part I will show how to open up the display panel.

STEP 1.
Remove twelve screws securing the bottom cover.

Remove twelve screws securing the bottom cover.

STEP 2.

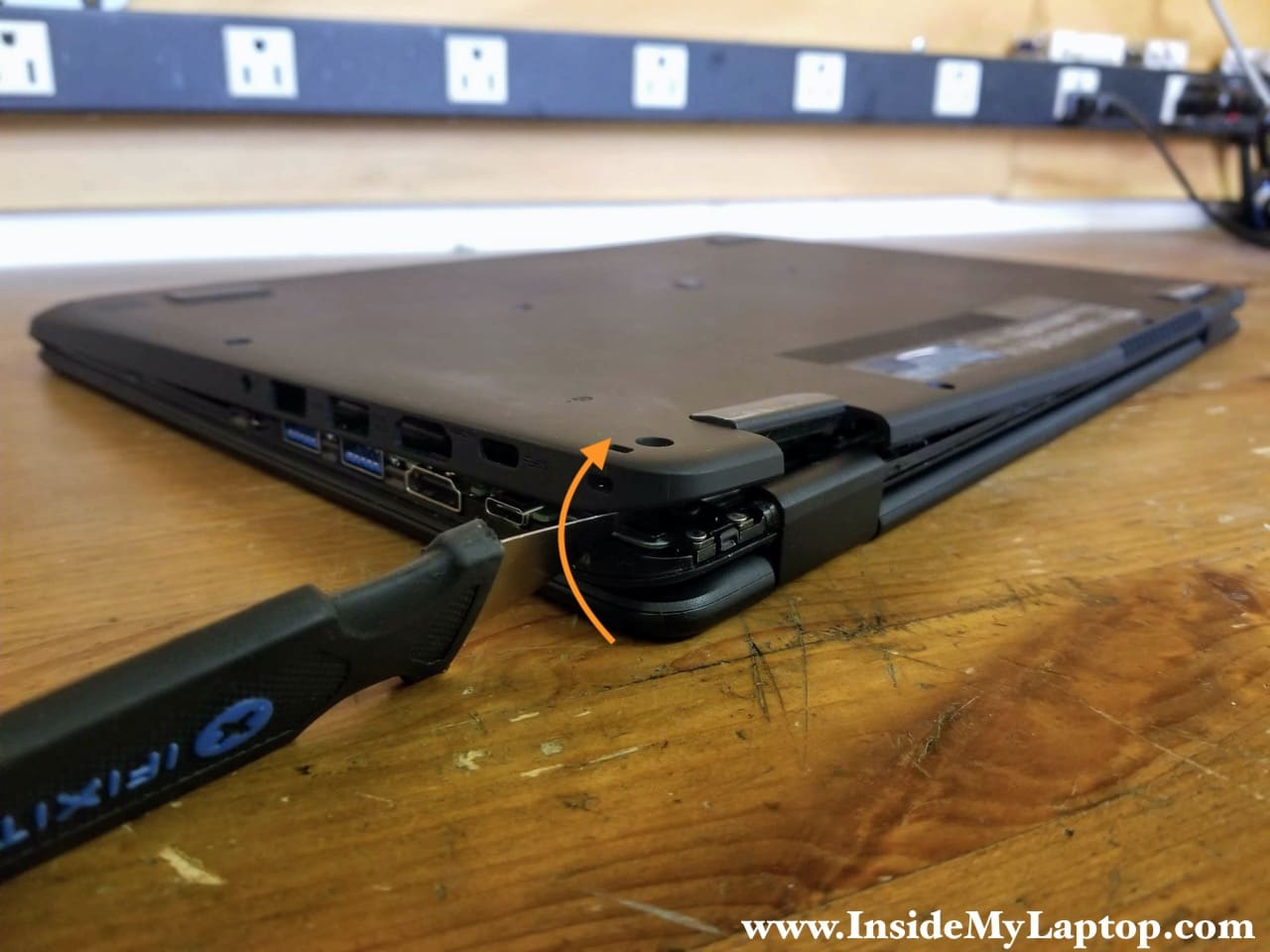

Start separating the bottom cover from the rest of the machine. You’ll have to apply some reasonable force because there are many hidden latches fastening two parts together.

Pry up the bottom cover using a case opener tool.

Start separating the bottom cover from the rest of the machine.

STEP 3.
Remove the bottom cover.

Remove the bottom cover.

STEP 4.
Remove two screws securing the main battery to the top case.
Disconnect the battery cable from the motherboard.

Remove two screws from the battery and disconnect the cable.

STEP 5.

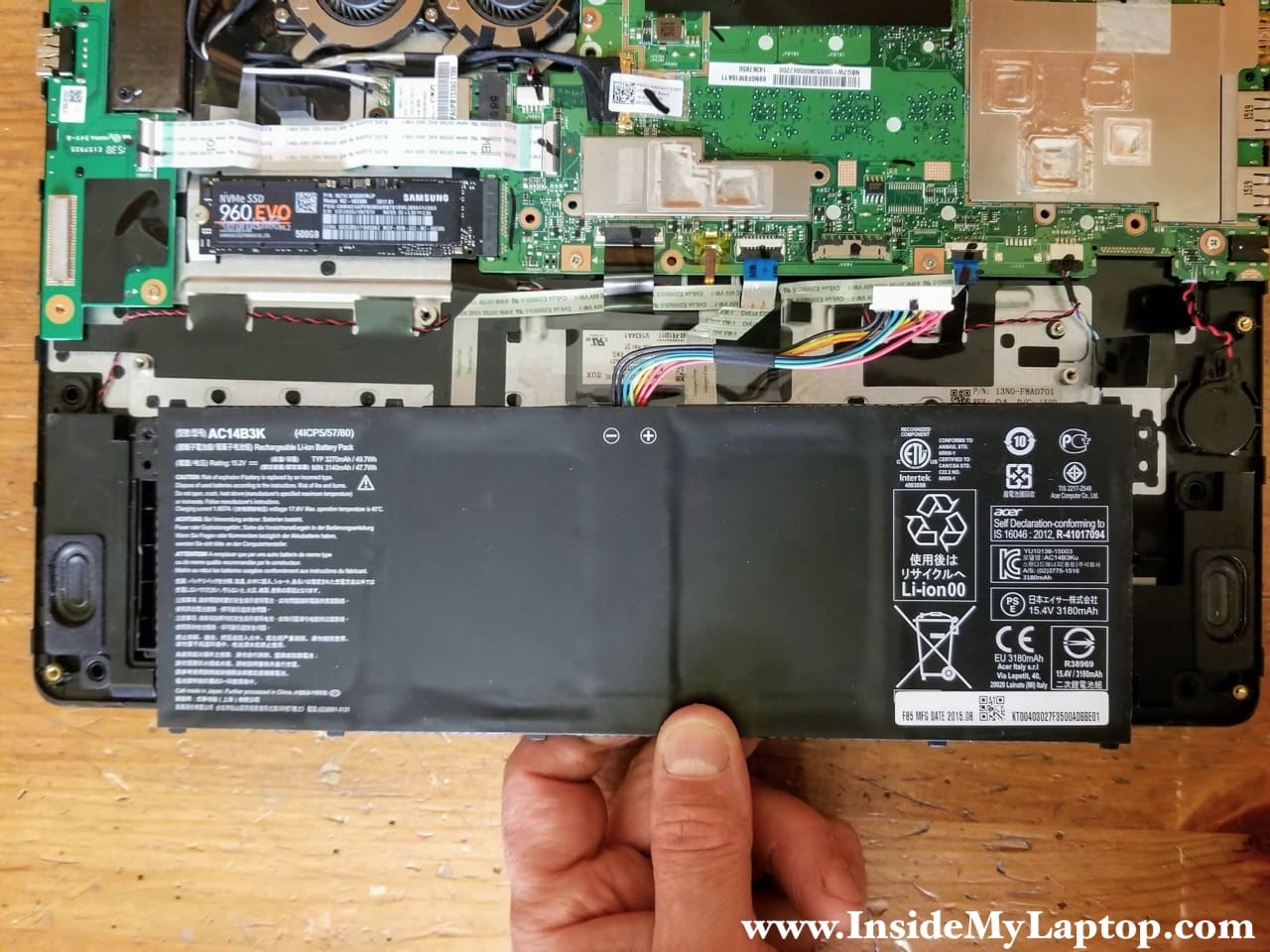

Remove the battery.
Acer Aspire R 14 (R5-471T-71W2) battery model: AC14B3K.

Remove the battery.

STEP 6.
Remove one screw securing the solid state drive and pull the SSD out.

This is m.2 NVMe solid state drive (type 2280).

Remove one screw securing the solid state drive and pull the SSD out.

STEP 7.

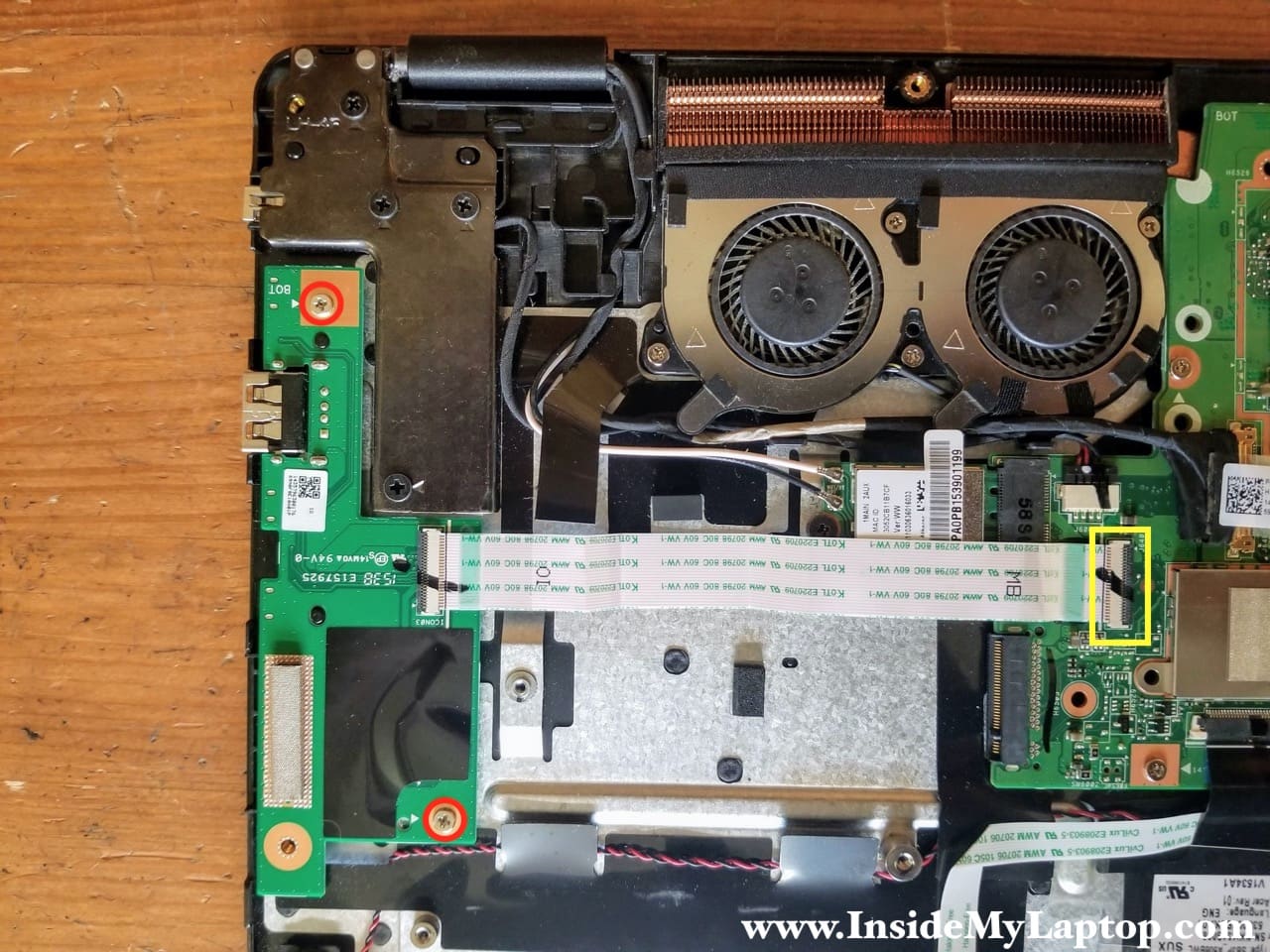

Remove two screws securing the USB/SD card reader/Power button board.
Disconnect the I/O cable from the motherboard.

I’ll be removing the I/O cable in order to access the wireless card. If you don’t need to remove the wireless card, you can disconnect the I/O cable from the USB/SD card reader/Power button board.

Remove two screws securing the USB/SD card reader/Power button board and disconnect the cable.

Here’s how to disconnect the I/O cable from the motherboard.

Lift up the brown locking tab to unlock the connector (red arrow).
Pull the cable out (yellow arrow).

Here's how to disconnect the I/O cable from the motherboard.

STEP 8.

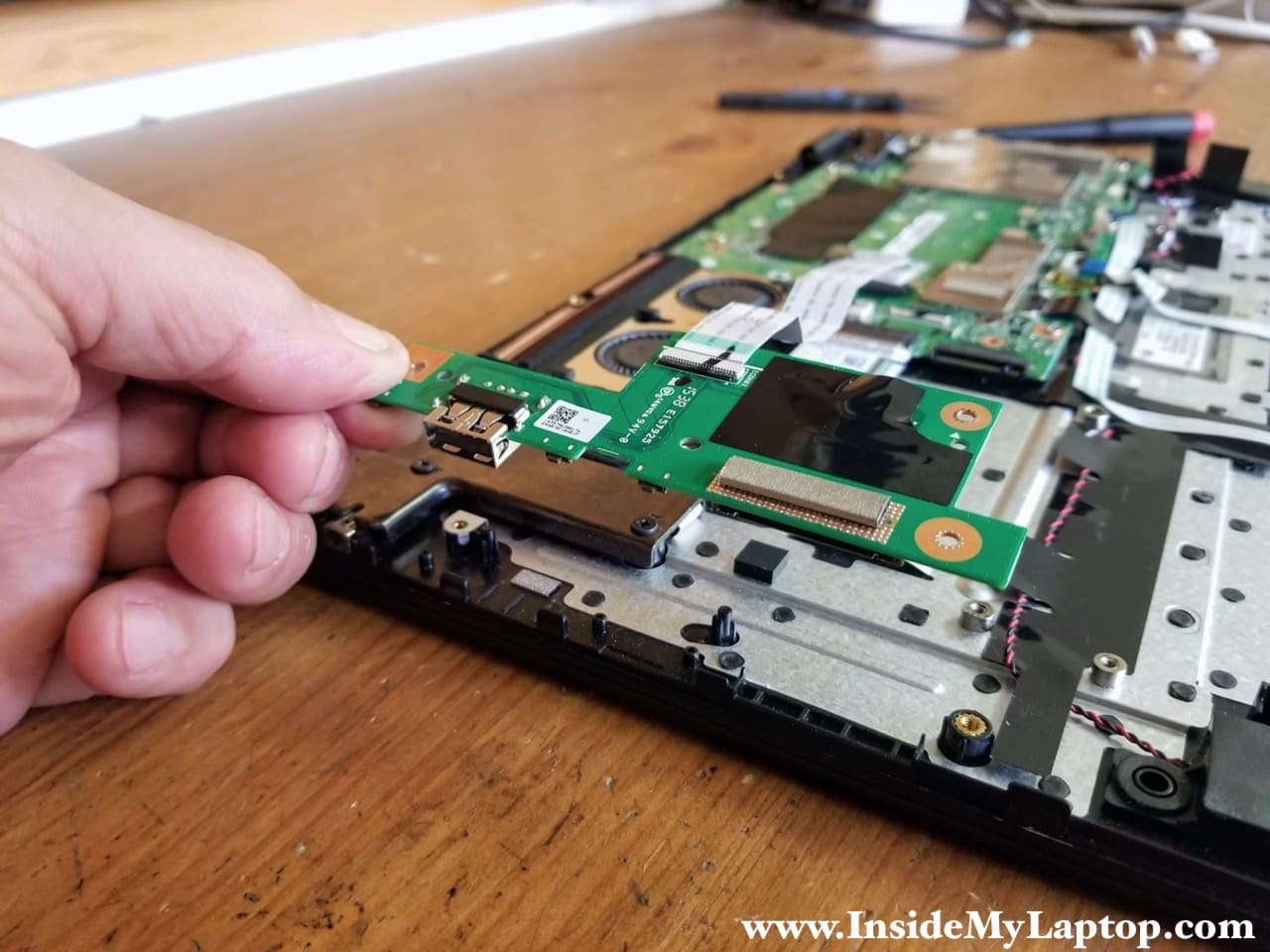

Remove the USB/SD card reader/Power button board with the I/O cable attached to it.
You’ll have to unglue the I/O cable from the top case. It’s secured by adhesive tape.

Remove the USB/SD card reader/Power button board with the I/O cable attached to it.

STEP 9.

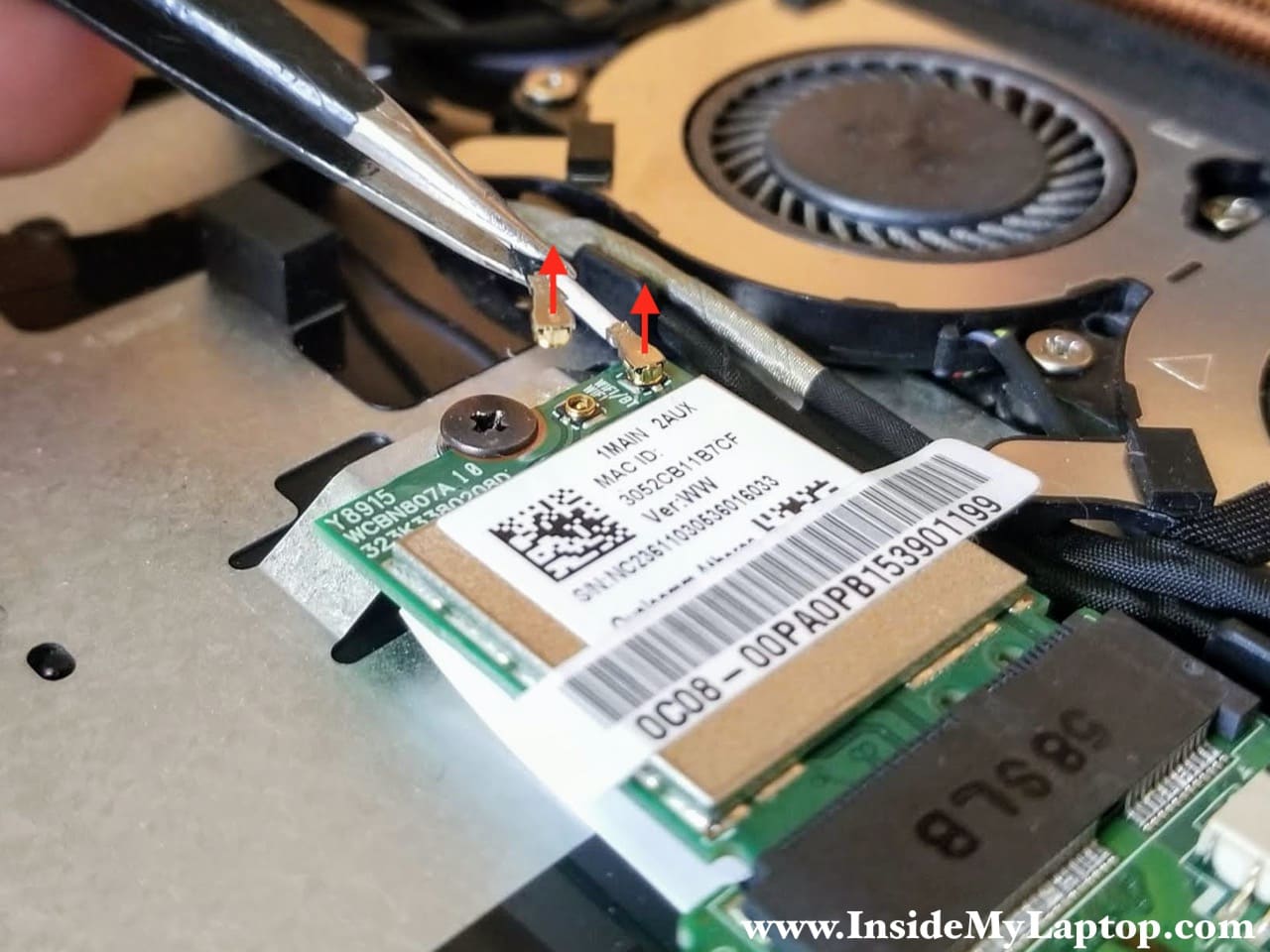

Disconnect both antenna cables from the wireless card.

Disconnect both antenna cables from the wireless card.

STEP 10.

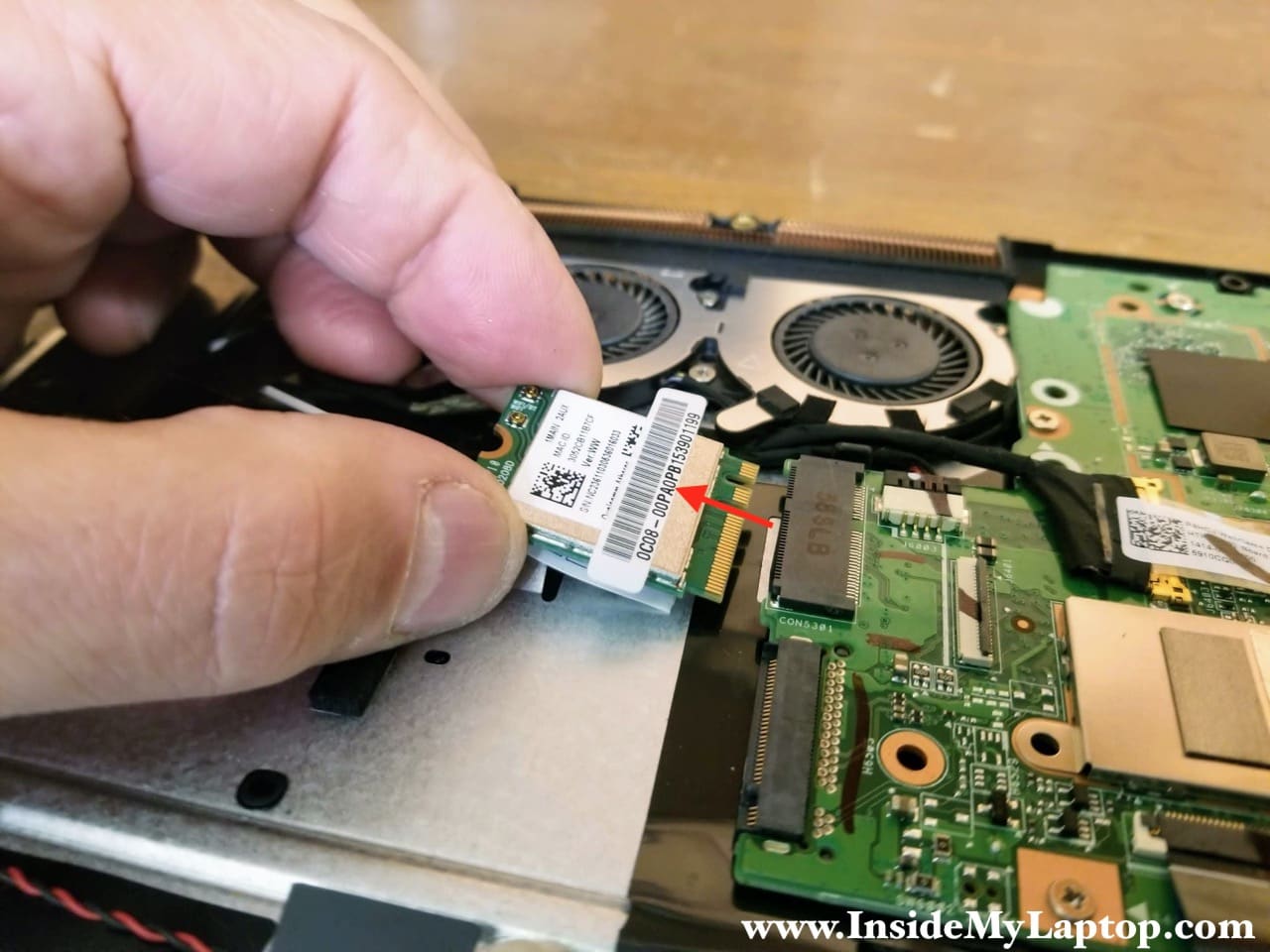

Remove one screw securing the wireless card and pull the card out.

Remove one screw securing the wireless card and pull the card out.

STEP 11.

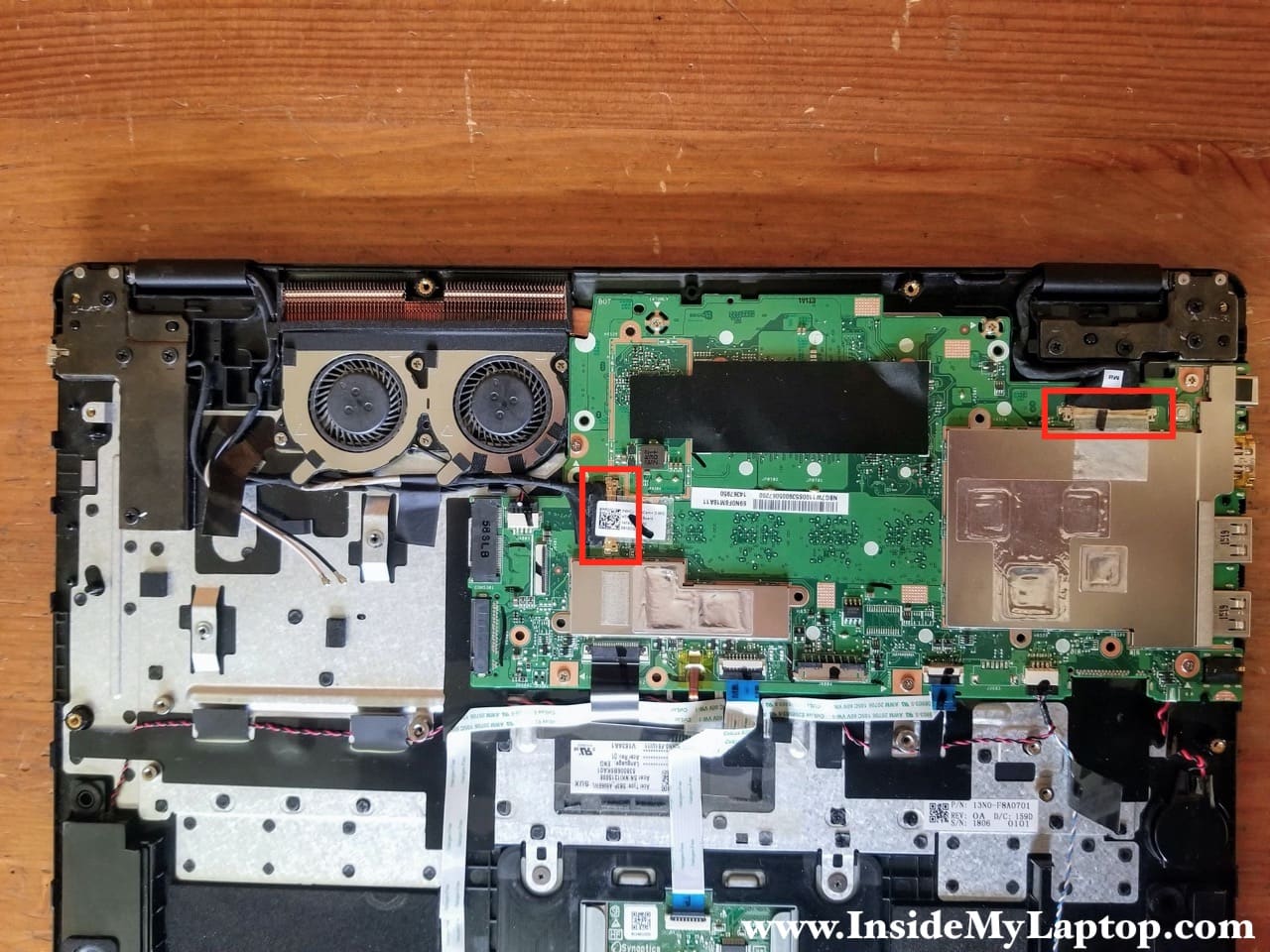

Disconnect two display cables from the motherboard.

Disconnect two display cables from the motherboard.

STEP 12.
Separate all display cables from the top case.

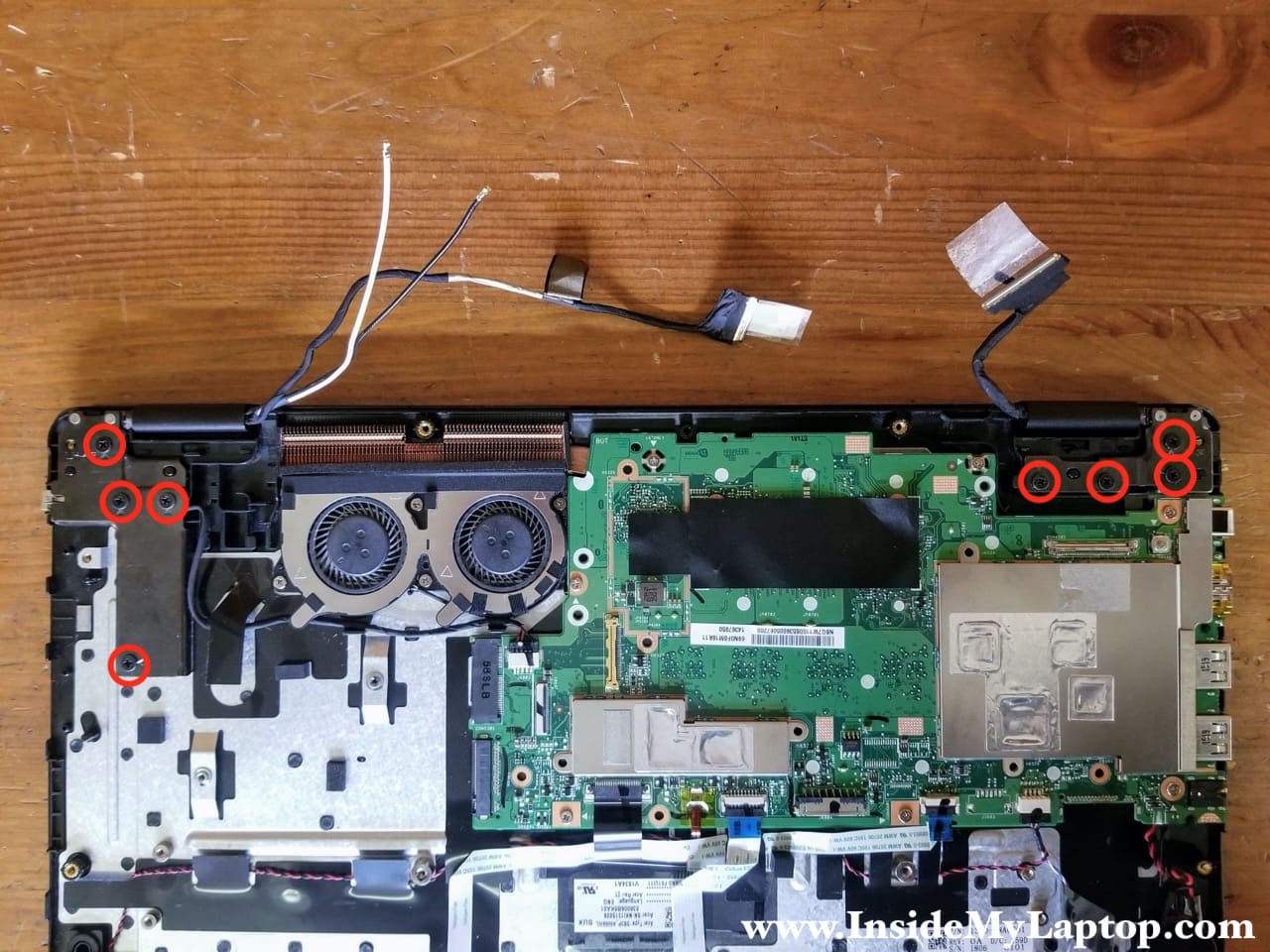

Remove eight screws securing the right and left display hinges.

Remove eight screws securing the right and left display hinges.

STEP 13.

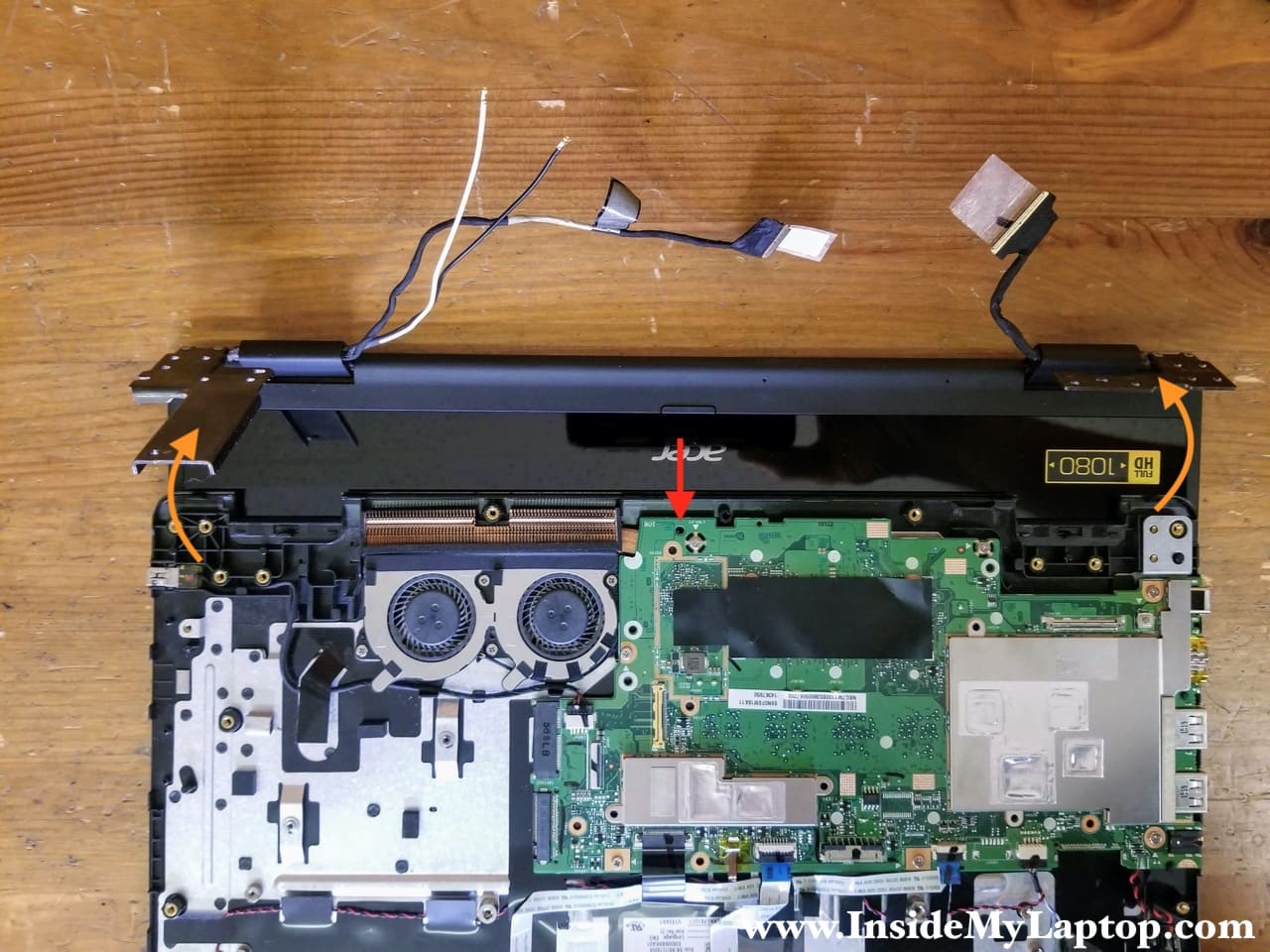

Lift up both display hinges and separate the top case assembly from the display panel.

I will show how to take apart the display panel later in this guide.

Lift up both display hinges and separate the top case assembly from the display panel.

STEP 14.
Disconnect the DC power jack cable from the motherboard.

Disconnect the DC power jack cable from the motherboard.

STEP 15.

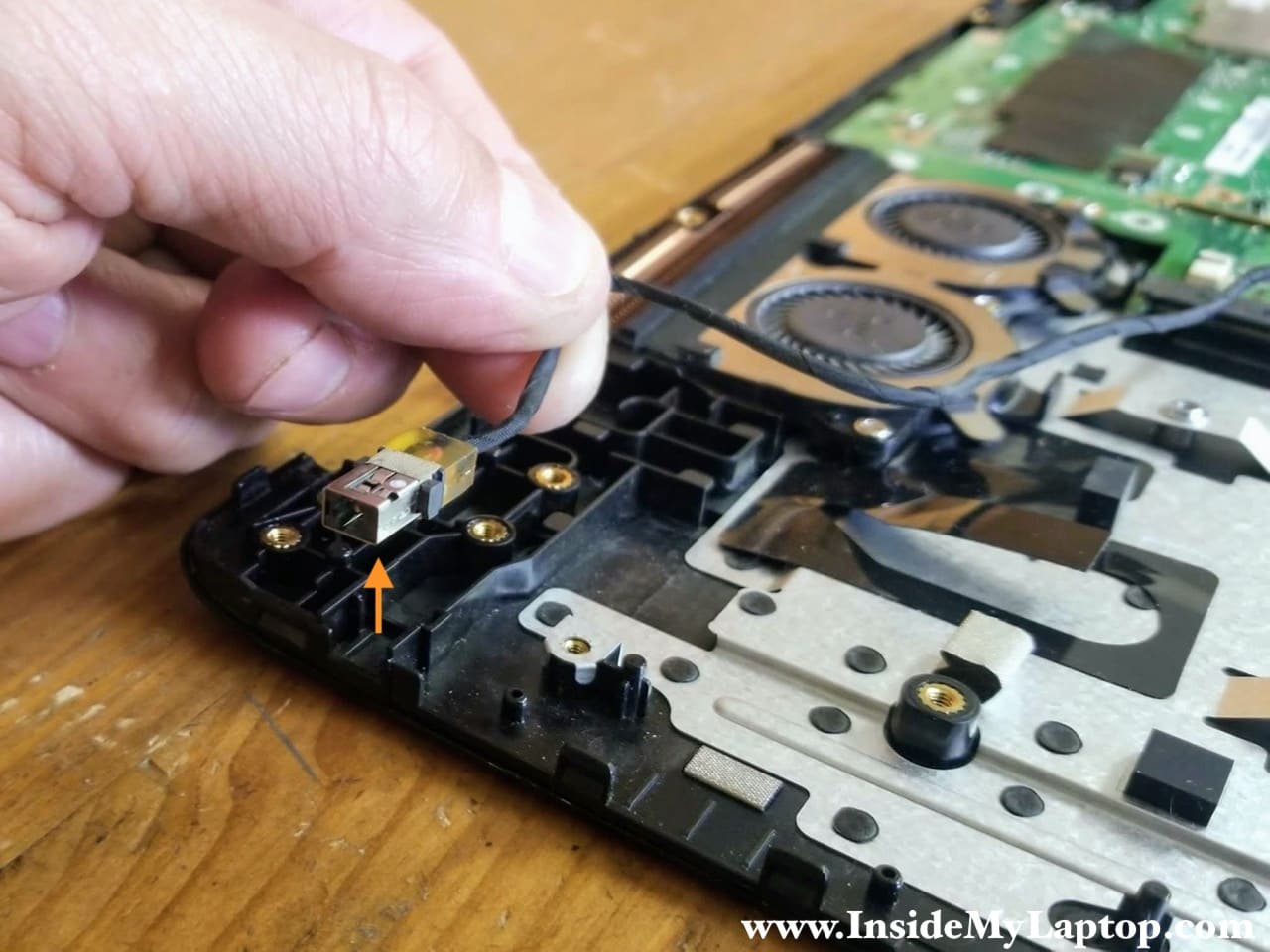

Lift up the DC power jack and remove the harness from the guided path on the top case.

Lift up the DC power jack and remove the harness from the guided path on the top case.

STEP 16.

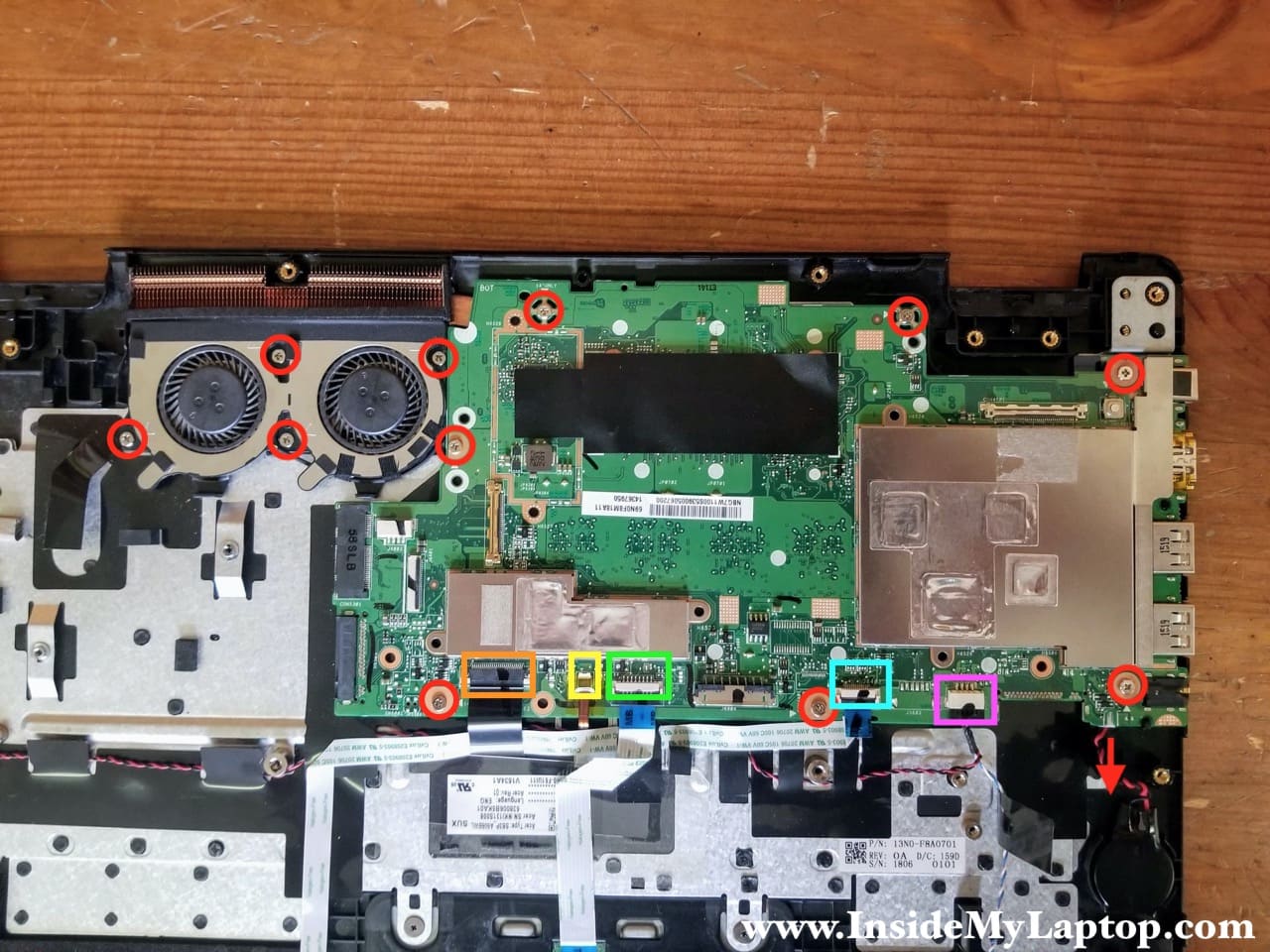

Remove eleven screws securing the motherboard and both cooling fans (attached to the heatsink).

Disconnect the following color-coded cables:
– Keyboard cable (orange).
– Keyboard backlight cable (yellow).
– Touchpad cable (green).
– Front LED board cable (blue).
– Speaker cable (pink).
– CMOS battery (red arrow). This connector located on the other side of the motherboard but still accessible.

Remove eleven screws securing the motherboard and both cooling fans and disconnect all shown cables.

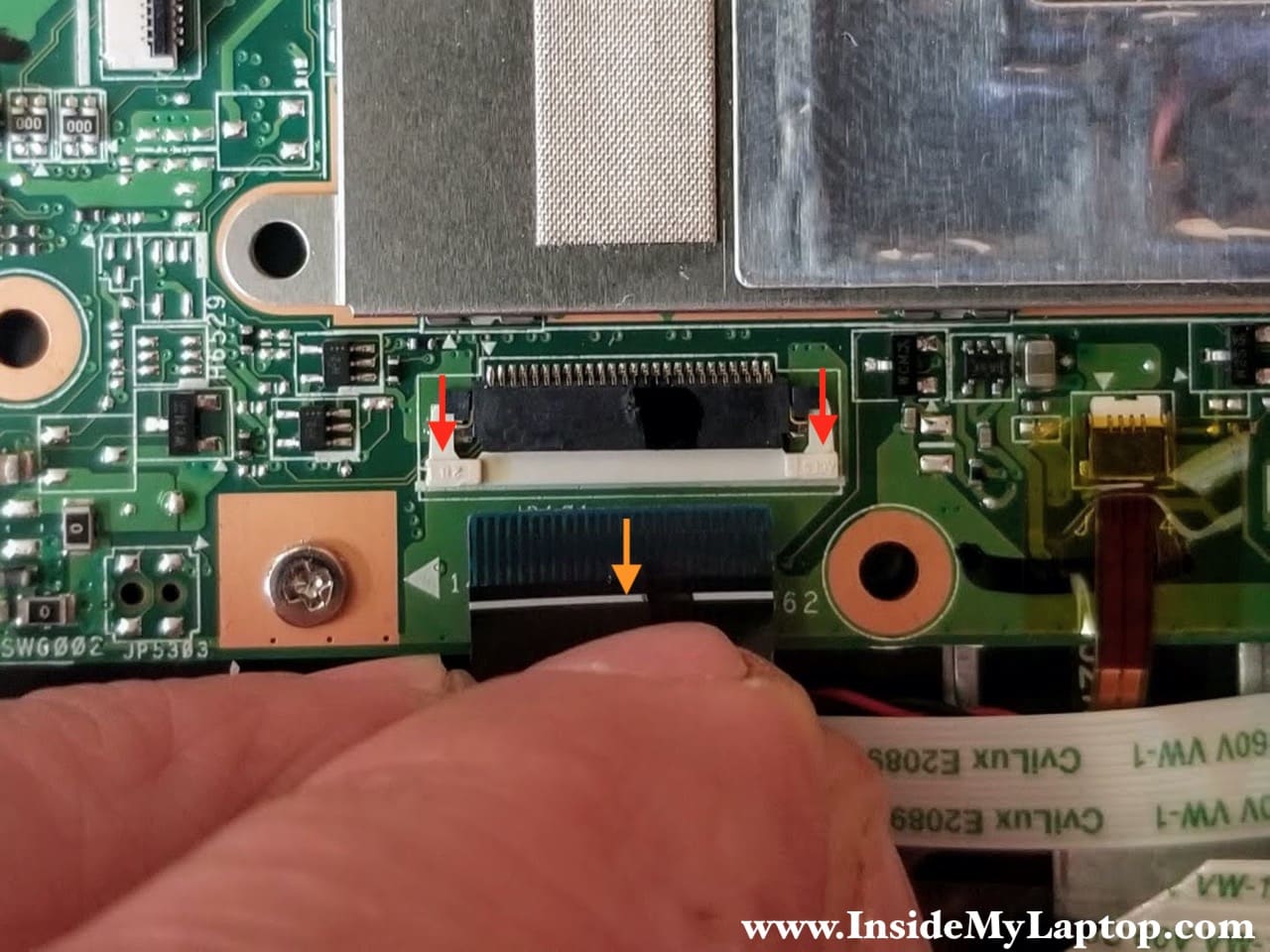

Here’s how to disconnect the keyboard cable.
Slide the white locking tab to the shown direction about 2 millimeters (two red arrows).
Pull the keyboard cable out (orange arrow).

Here's how to disconnect the keyboard cable.

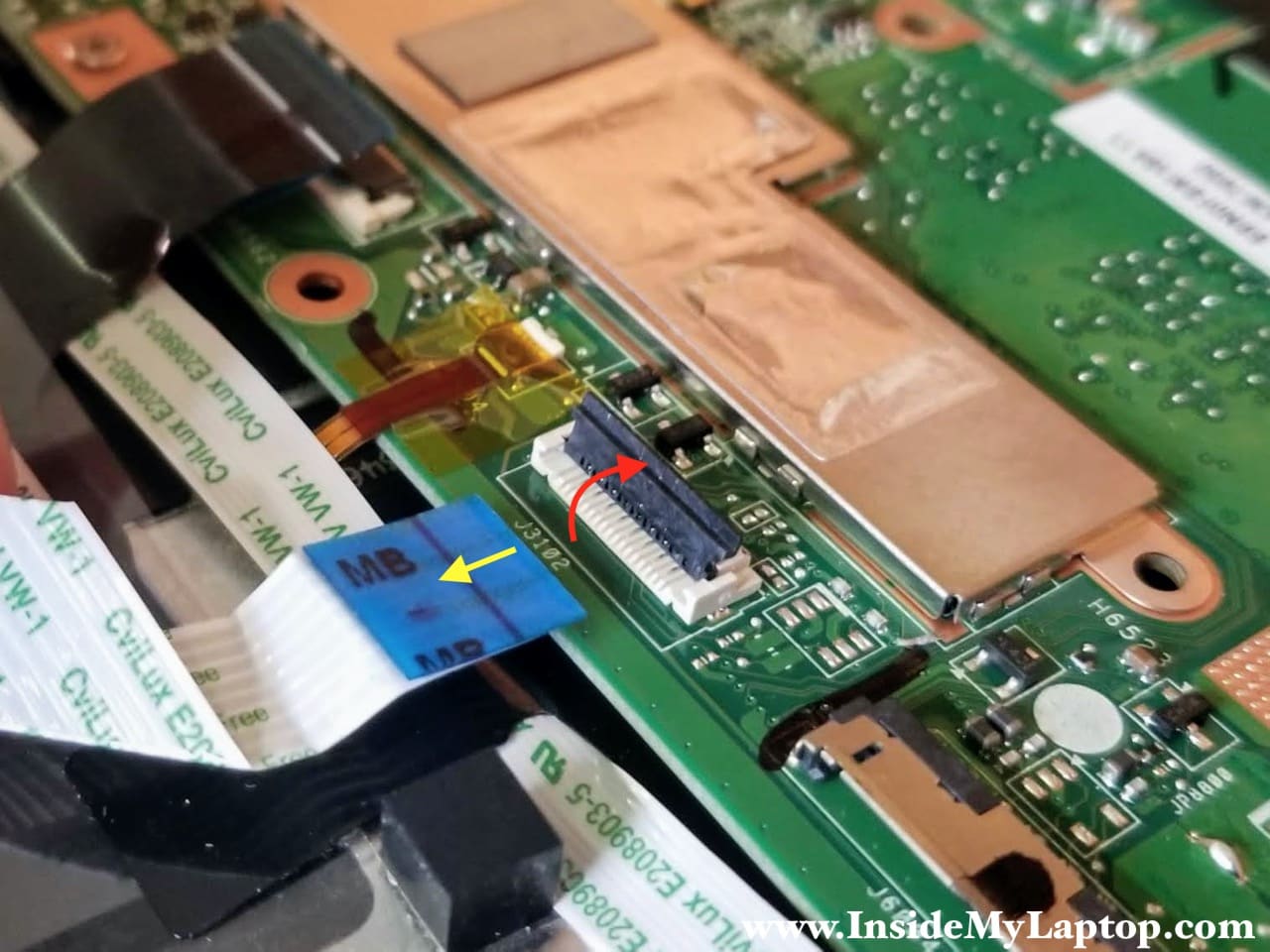

Here’s how to disconnect the touchapad and front LED board cables.
Lift up the locking tab (red arrow) and pull the cable out (yellow arrow).

Here's how to disconnect the touchapad and front LED board cables.

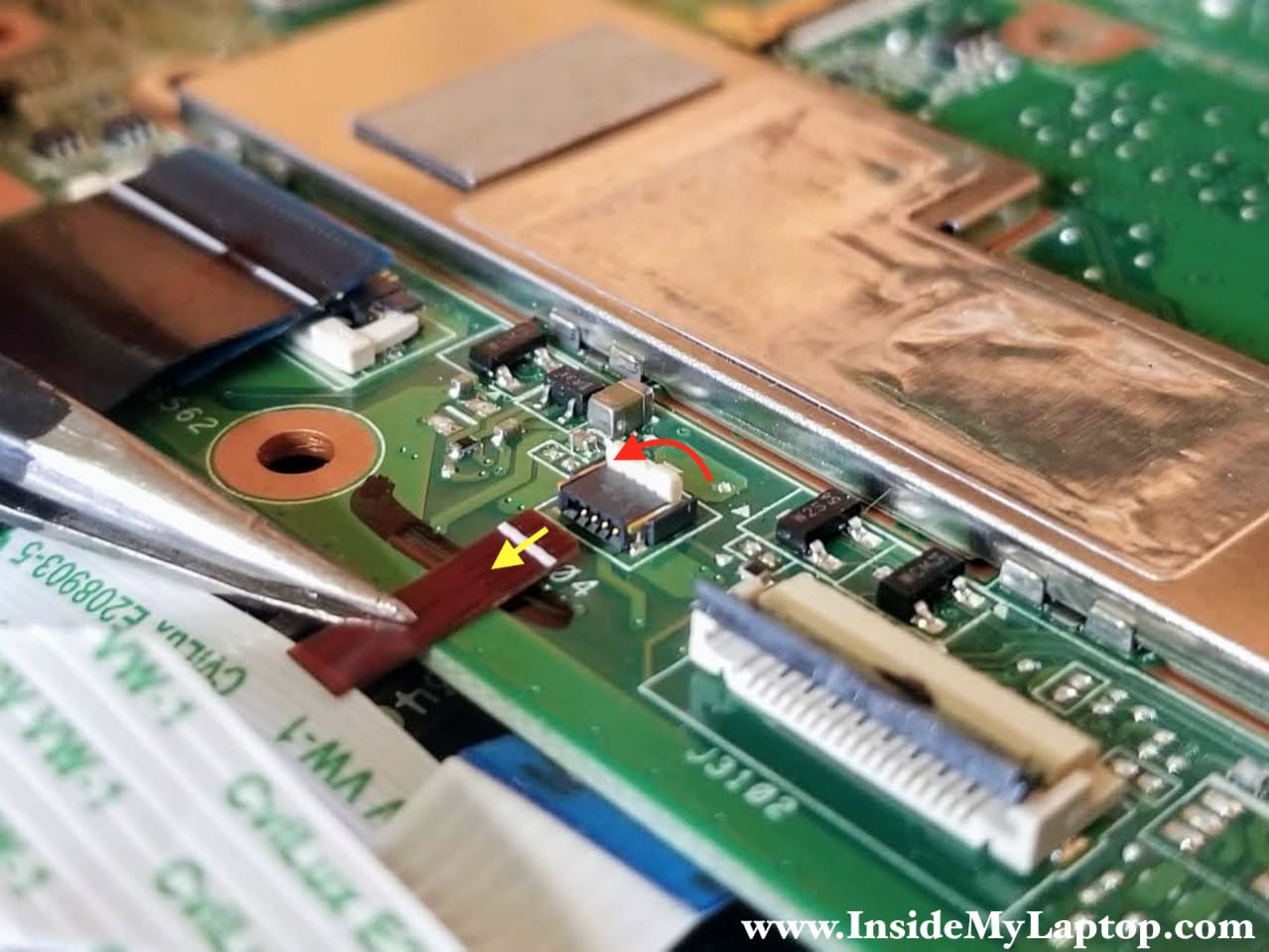

The keyboard backlight connector is small. Be careful while unlocking it (red arrow) and removing the cable (yellow arrow).

The keyboard backlight connector is small. Be careful while unlocking it.

STEP 17.

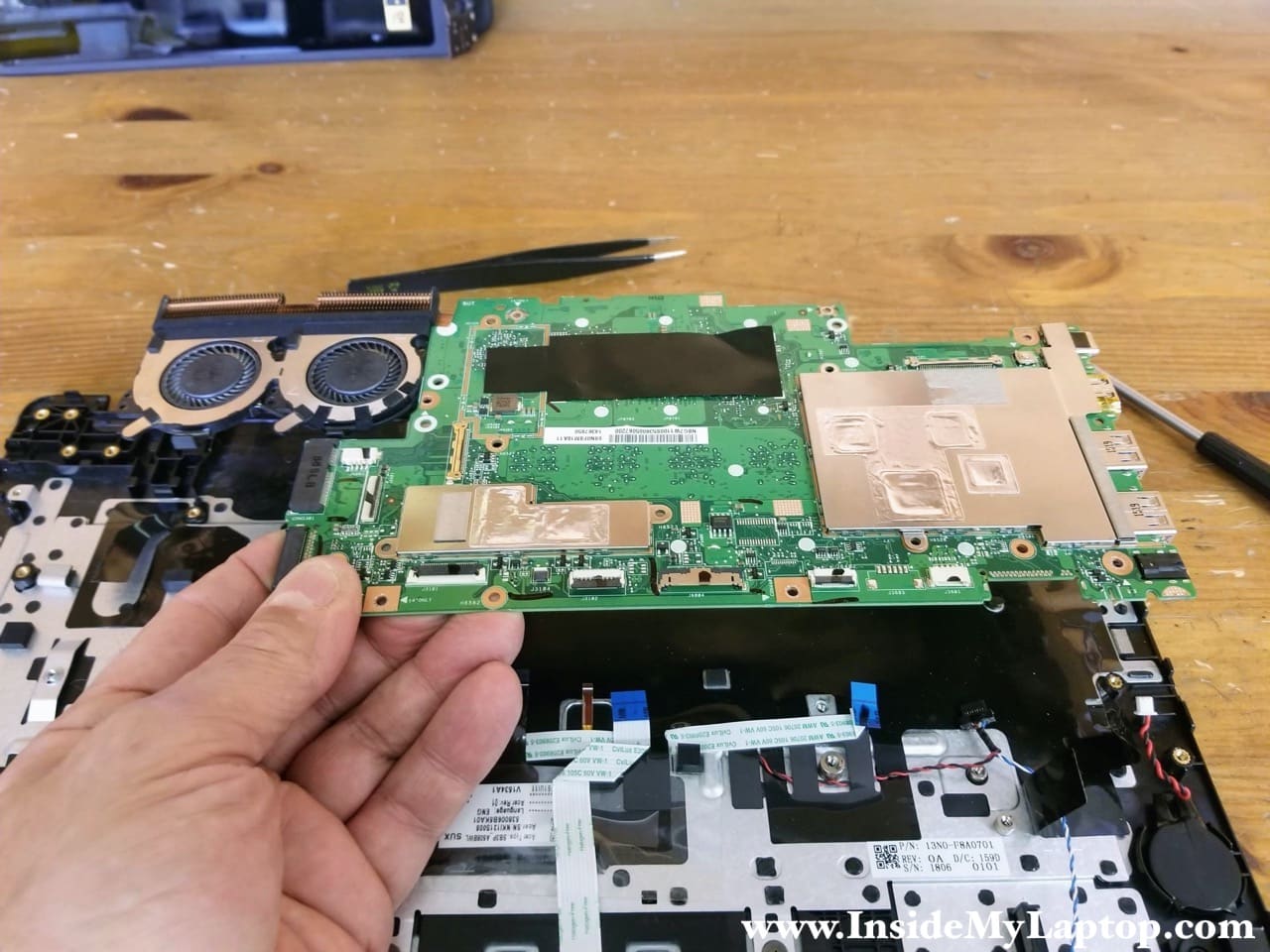

With all screws removed and cables disconnected you can lift up and remove the motherboard.

Remove the motherboard.

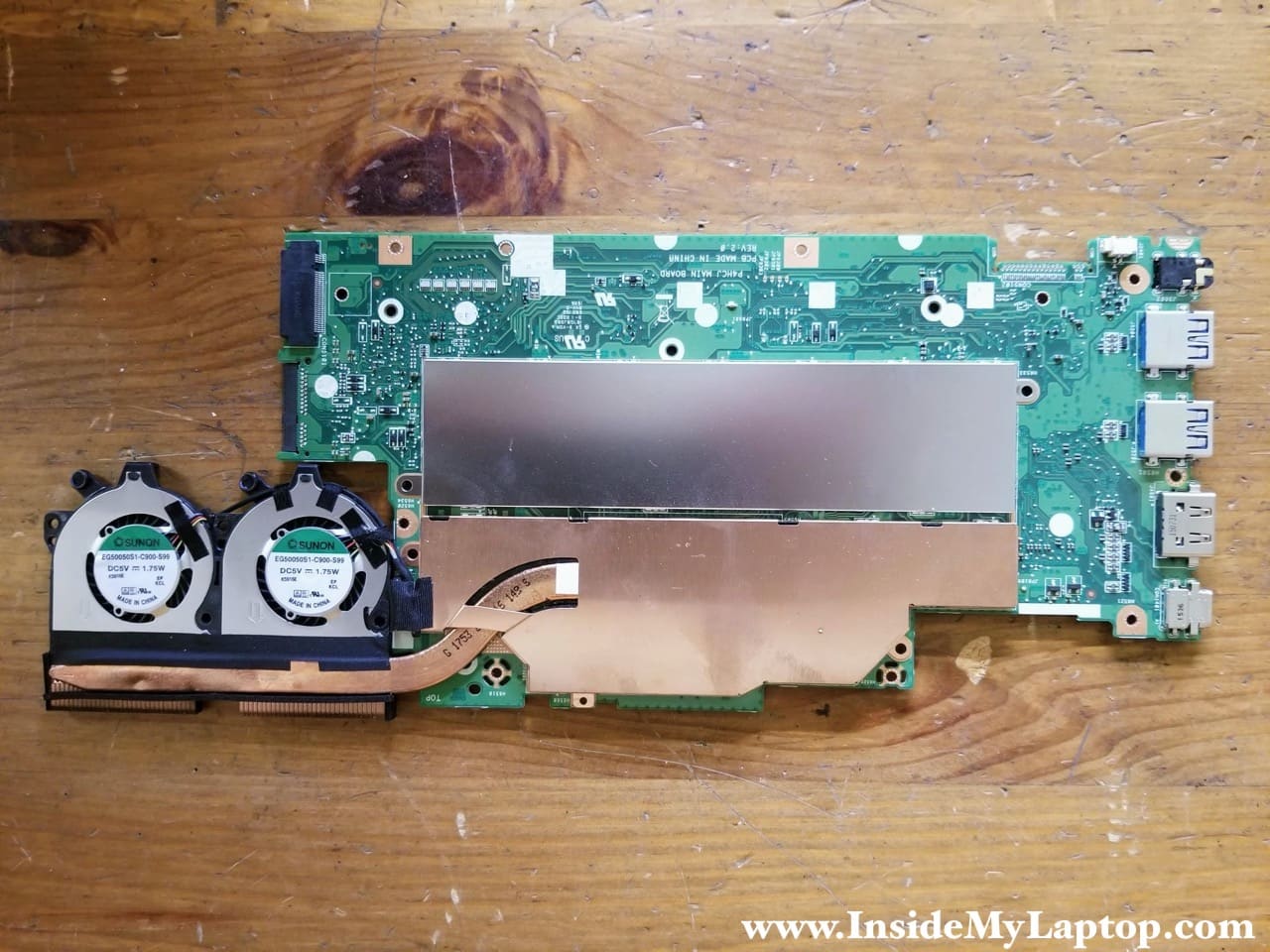

Here’s a photo of the other side of the motherboard.

Here's a photo of the other side of the motherboard.

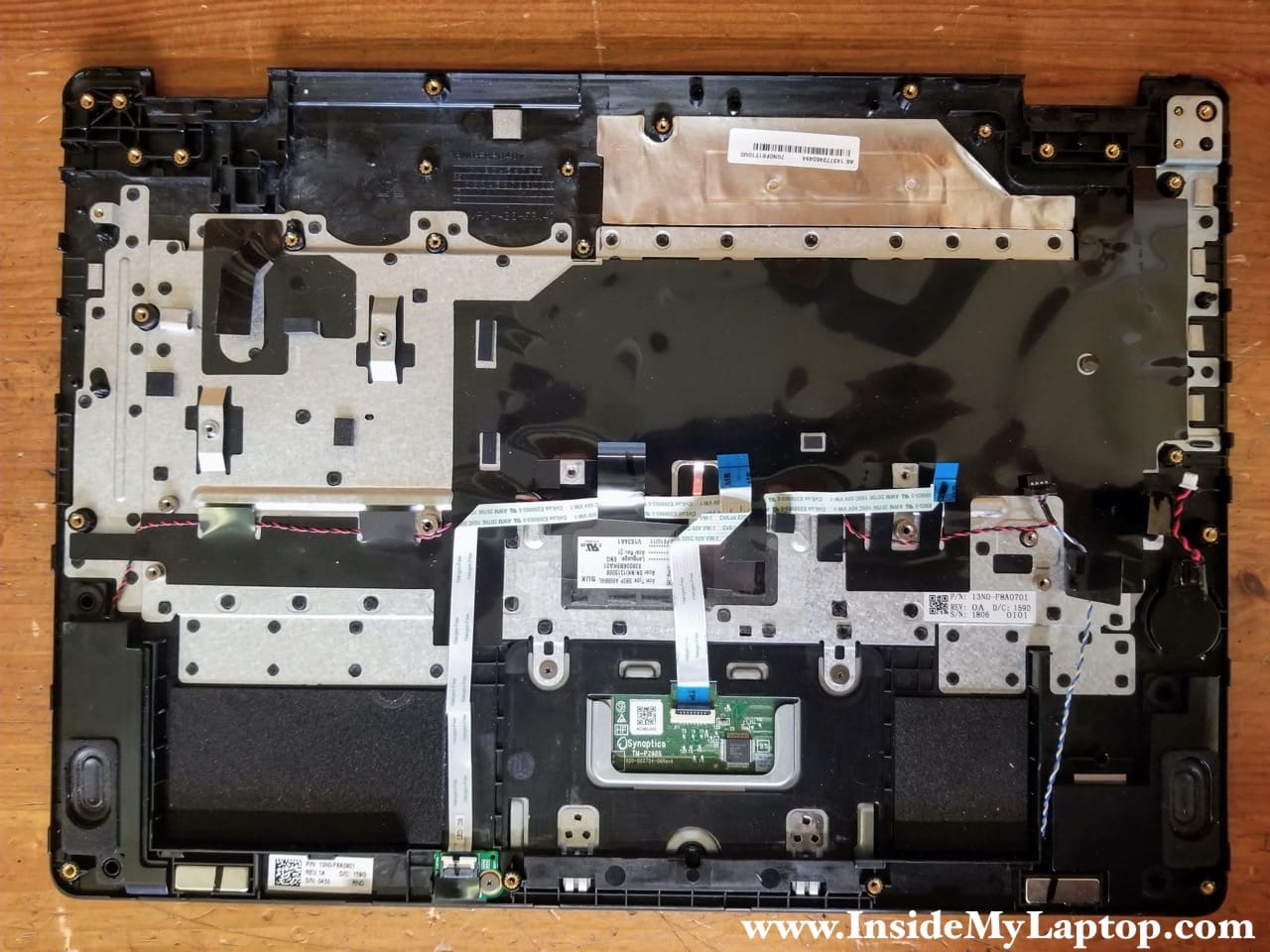

The keyboard in Acer Aspire R 14 (R5-471T-71W2) laptop is not easily removable. It’s permanently attached to the top case.
The touchpad, on the other hand, can be removed and replaced if necessary.

The keyboard in Acer Aspire R 14 (R5-471T-71W2) laptop is not removable.

How to take apart Acer Aspire R 14 display panel.

After the display panel separated from the laptop base (as it shown in the step 13), you can take apart the display panel and remove the LCD screen.

STEP 18.

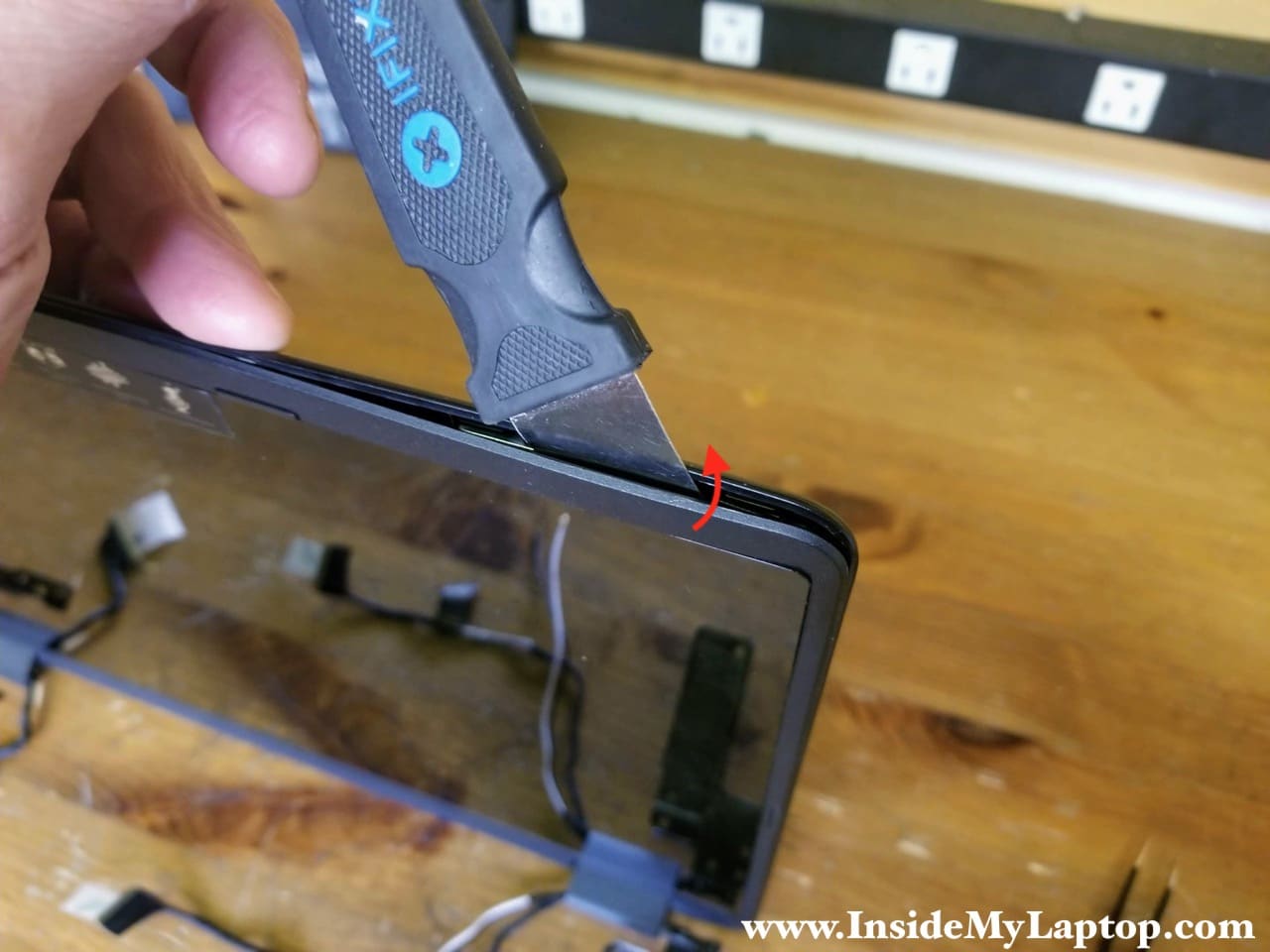

Start separating the front bezel from the display back cover using a thin metal case opener tool.

Pry up the bezel to disengage multiple hidden latches fastening two parts together.

Start separating the front bezel from the display back cover.

STEP 19.

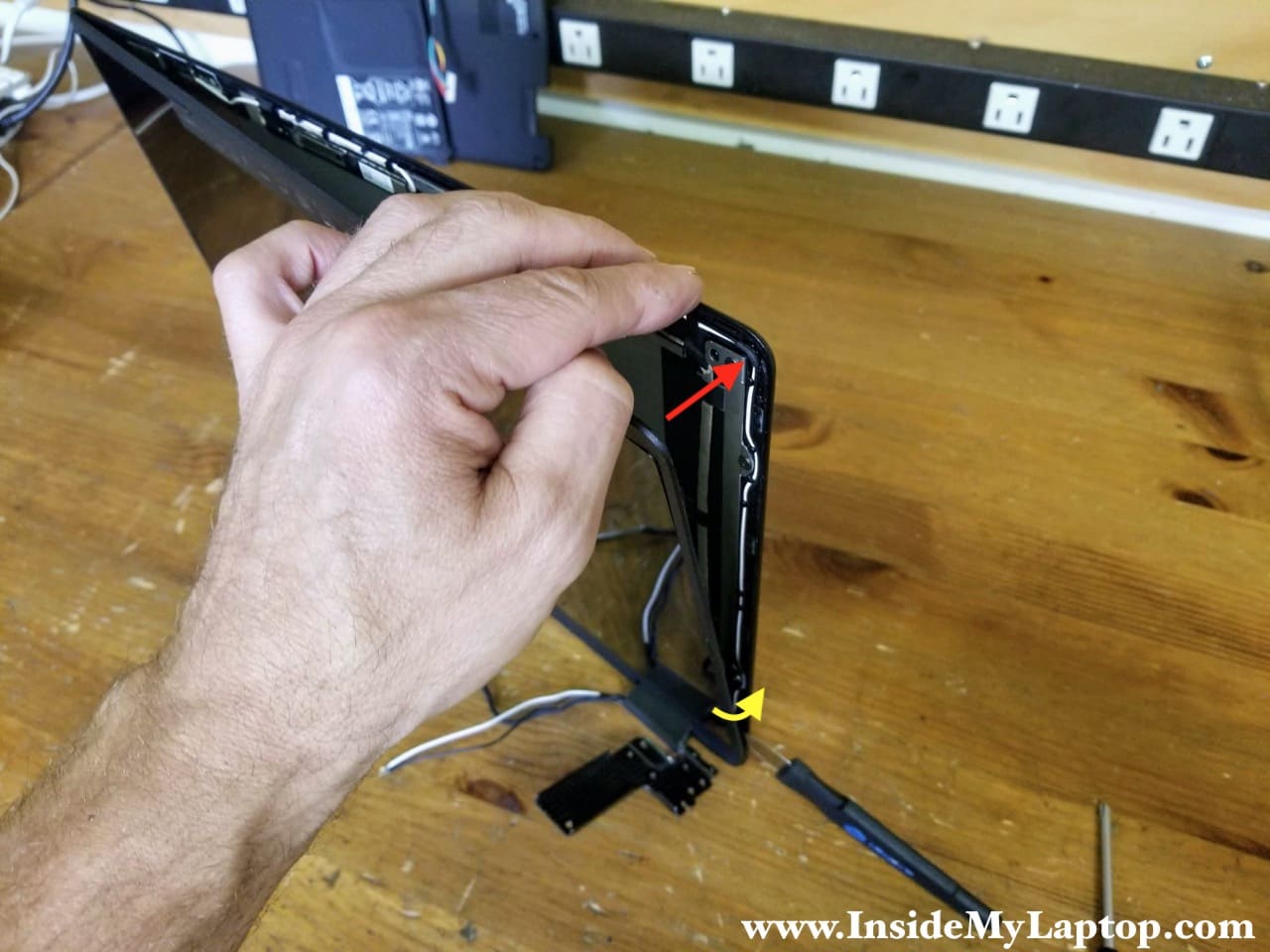

Continue separating the front bezel with your fingers while helping with the case opener tools.

Continue separating the front bezel with your fingers while helping with the case opener tools.

STEP 20.

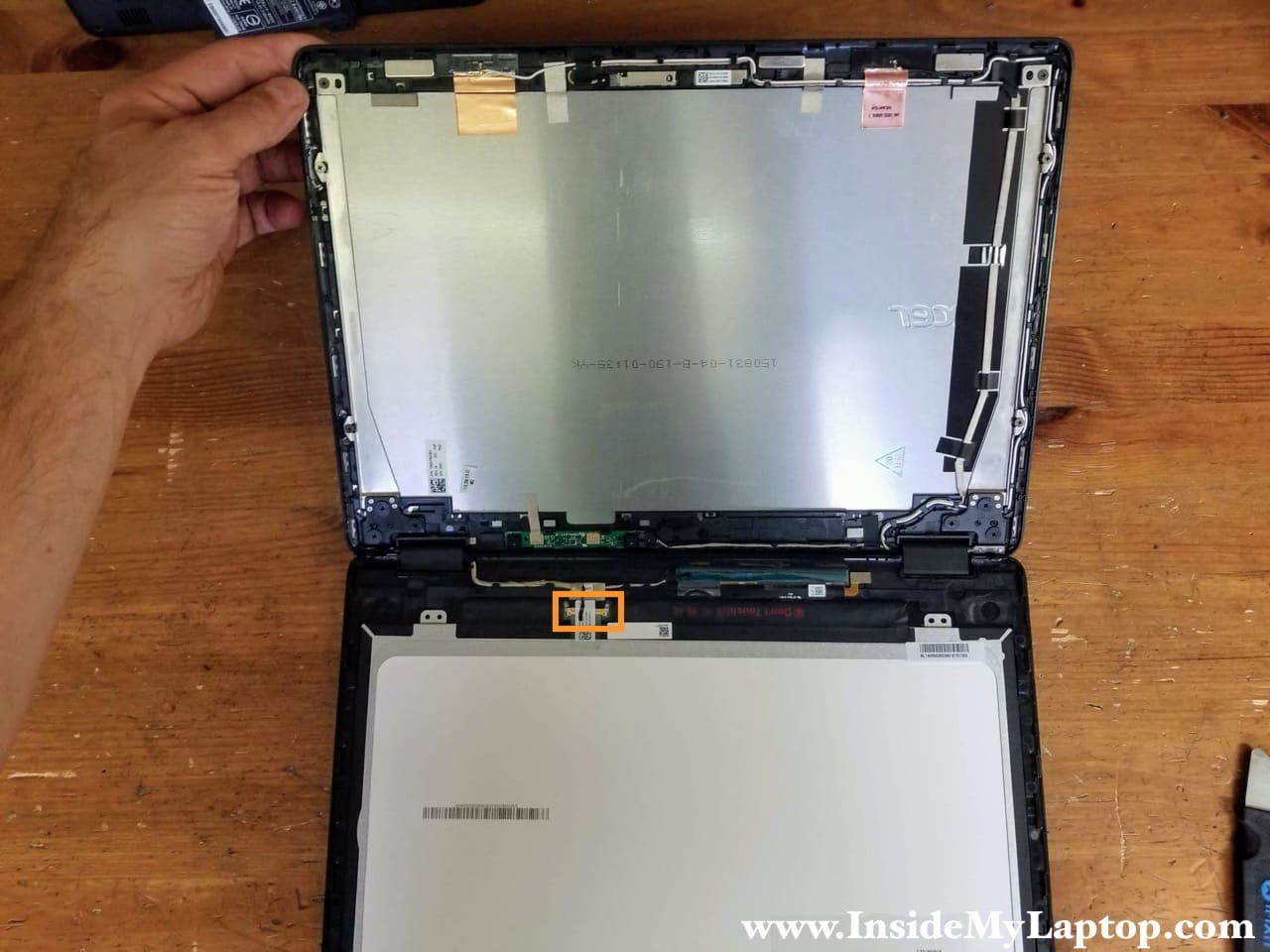

Separate the front bezel (with LCD screen attached to it) from the display back cover.

Now you can access and disconnect the display cable.

Separate the front bezel (with LCD screen attached to it) from the display back cover.

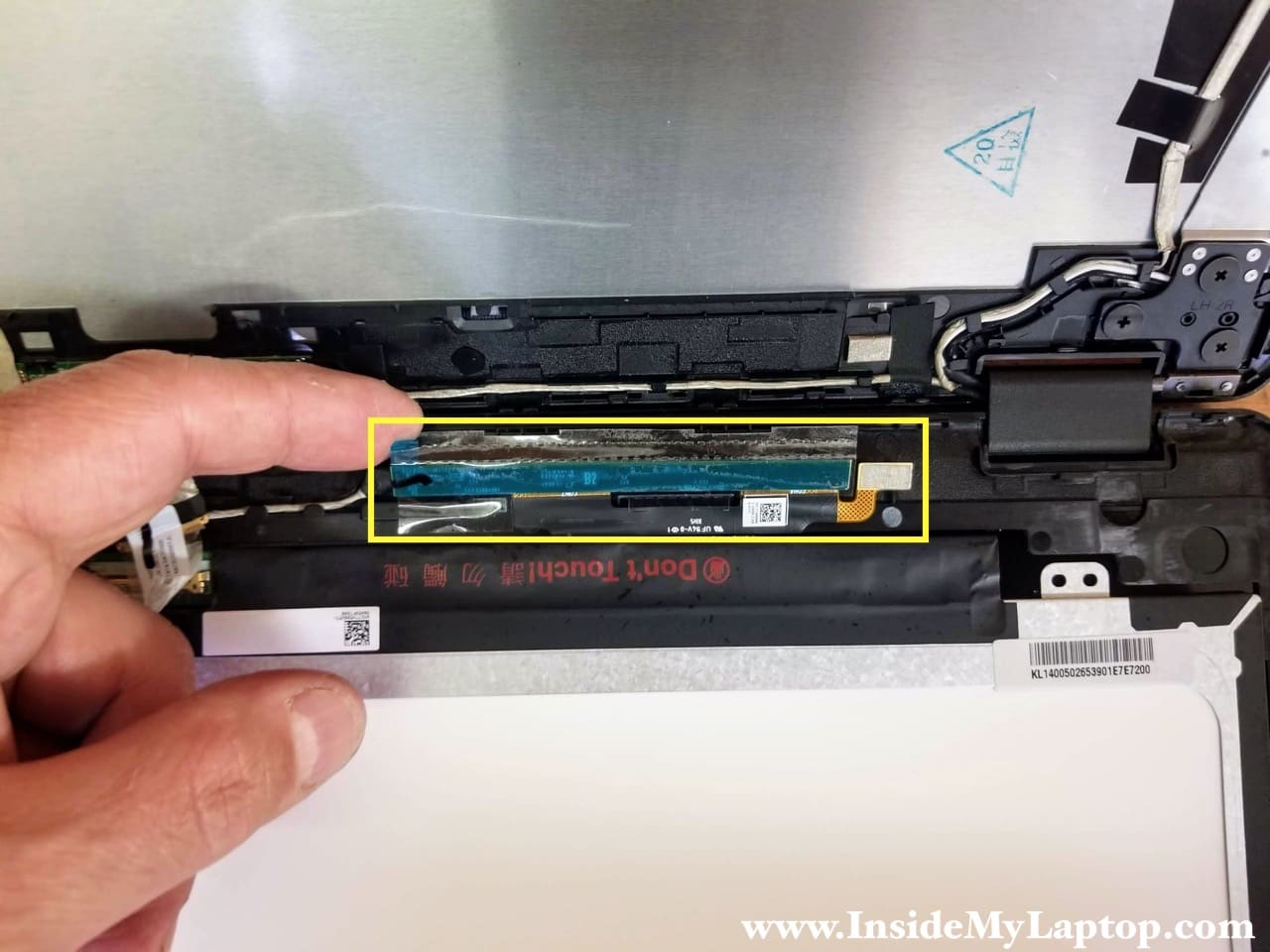

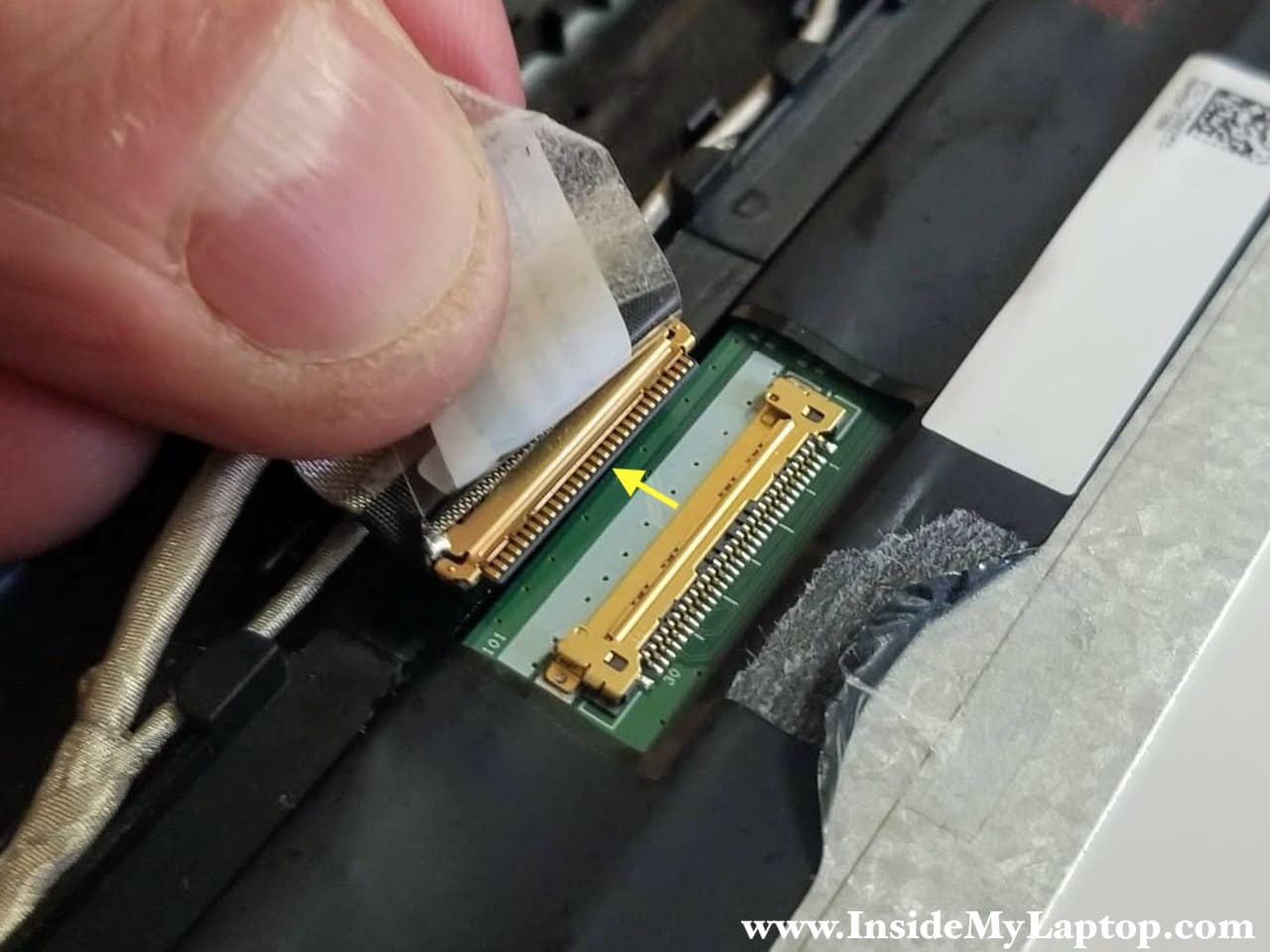

Remove sticky tape securing the connection and disconnect the display cable from the LCD screen.

Remove sticky tape securing the connection and disconnect the display cable from the LCD screen.

STEP 21.

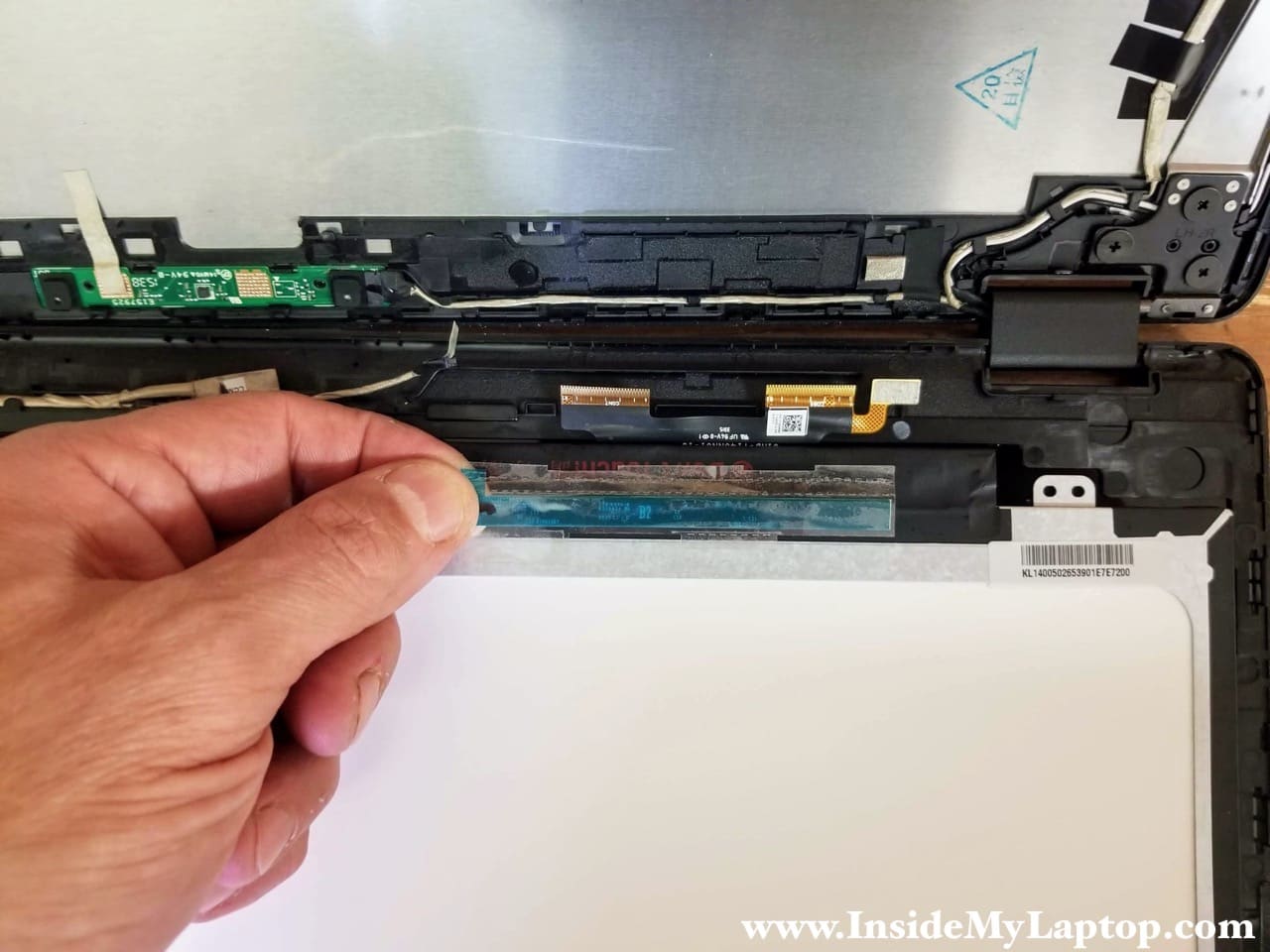

Carefully lift up the touchscreen digitizer board and turn it over.

I don’t now if your new screen will come with this board attached. I will show how to disconnect the board just in case if your new screen doesn’t have it.

Carefully lift up the touchscreen digitizer board and turn it over.

STEP 22.

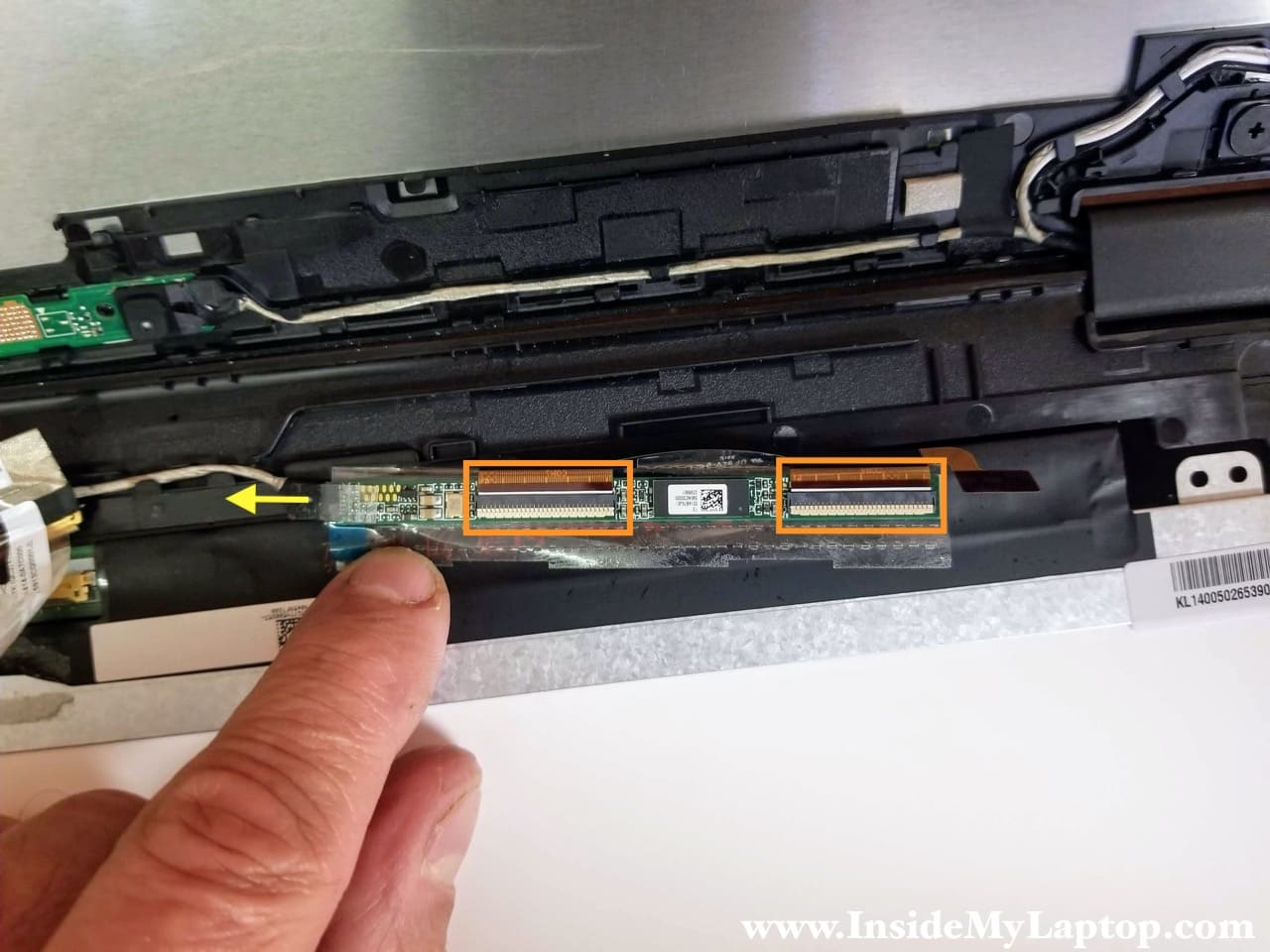

On the other side of the touchscreen digitizer board you will see three connectors.

If your new screen already has this board installed, all you have to do is disconnect one cable from the side (yellow arrow).

If your new screen doesn’t have this board installed, you’ll have to disconnect two more cables (color-coded in orange) and transfer the board to the new screen.

On the other side of the touchscreen digitizer board you will see three connectors.

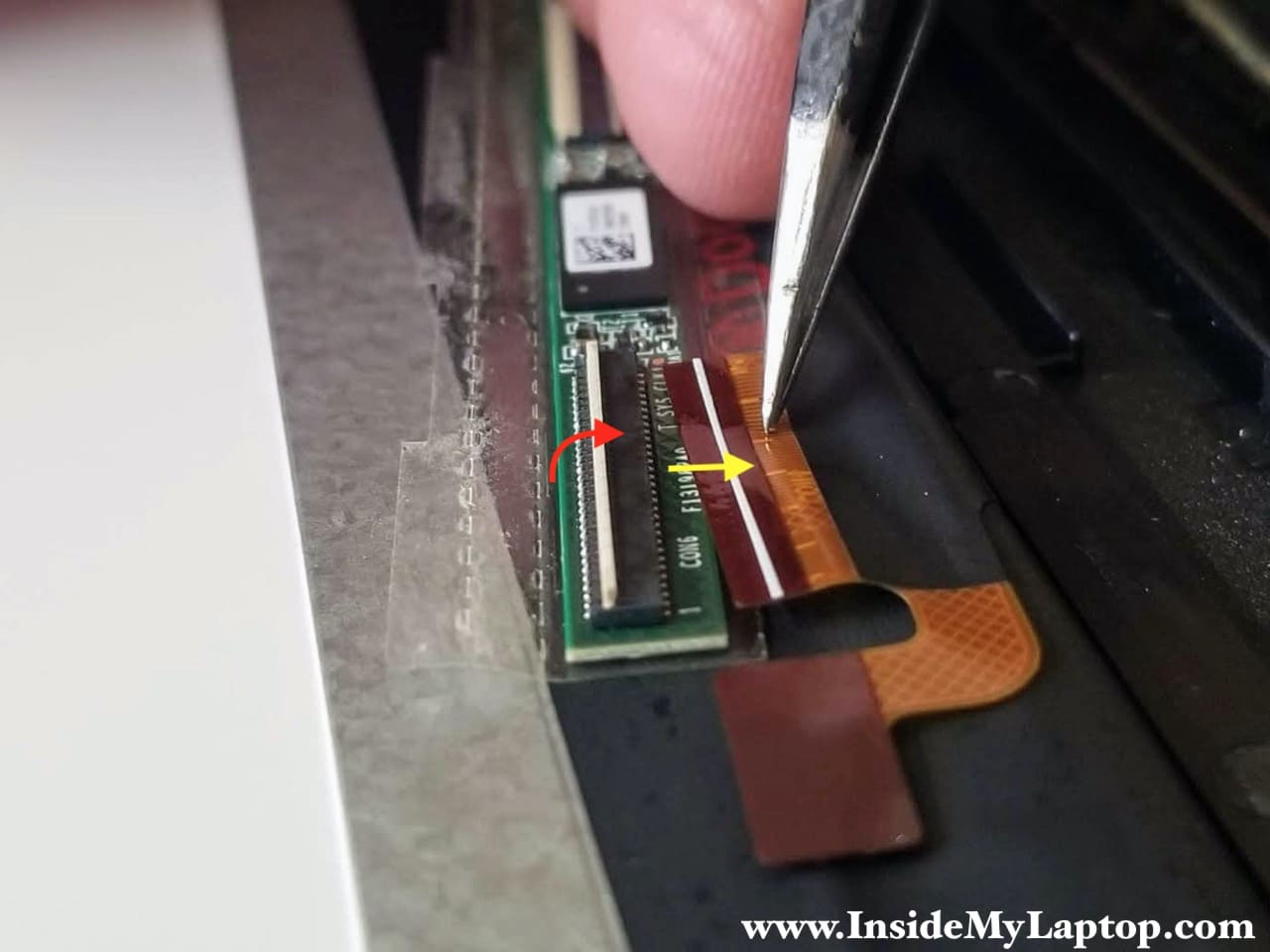

Here’s how to disconnect the digitizer cable.
Unlock the connector (red arrow) and pull the cable out (yellow arrow).

Here's how to disconnect the digitizer cable.

STEP 23.
Now you can transfer the touchscreen digitizer board to the new screen if necessary.

Now you can transfer the touchscreen digitizer board to the new screen if necessary.

STEP 24.

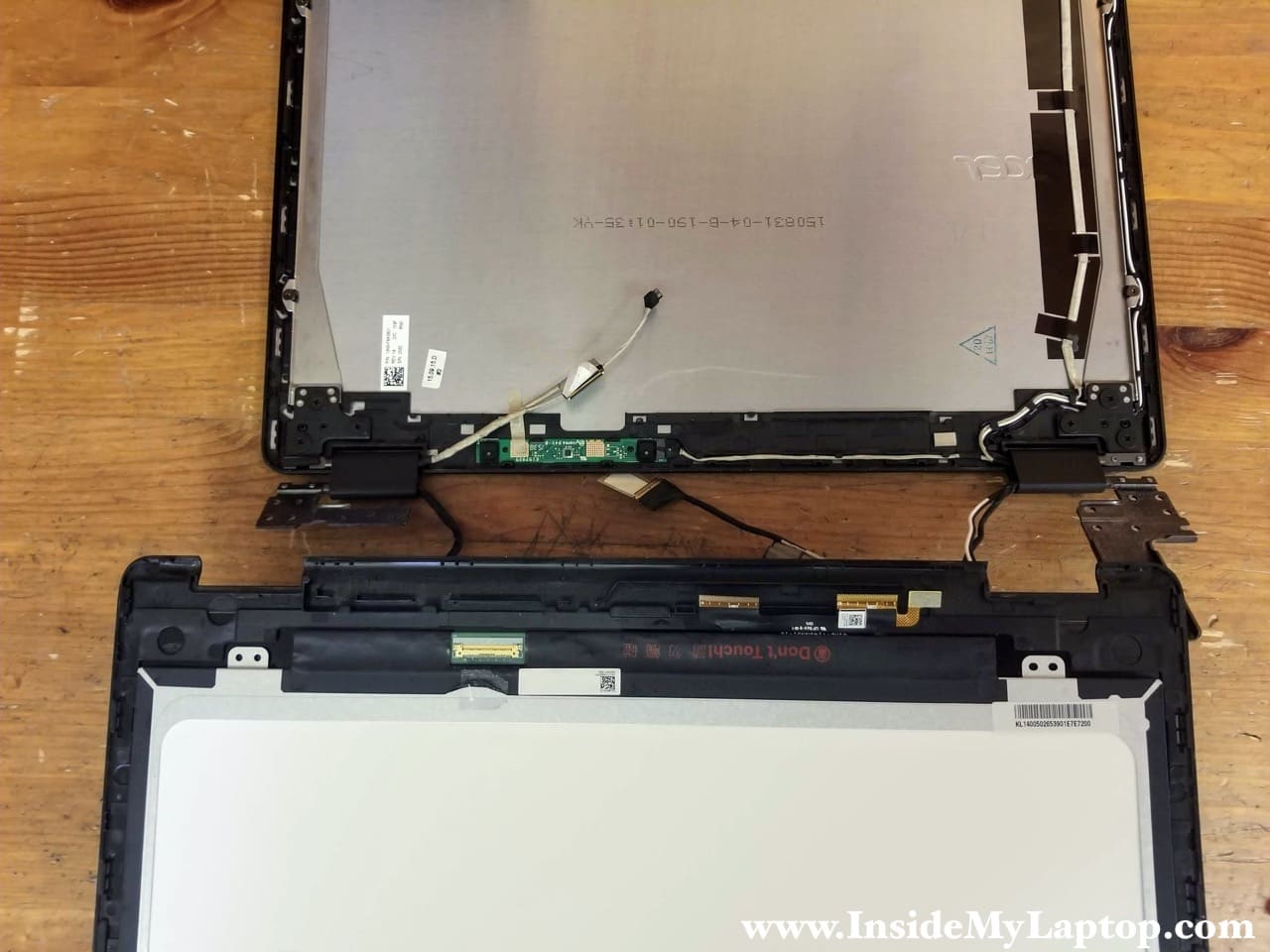

With all cables disconnected you can separate the LCD screen from the back cover.

With all cables disconnected you can separate the LCD screen from the back cover.

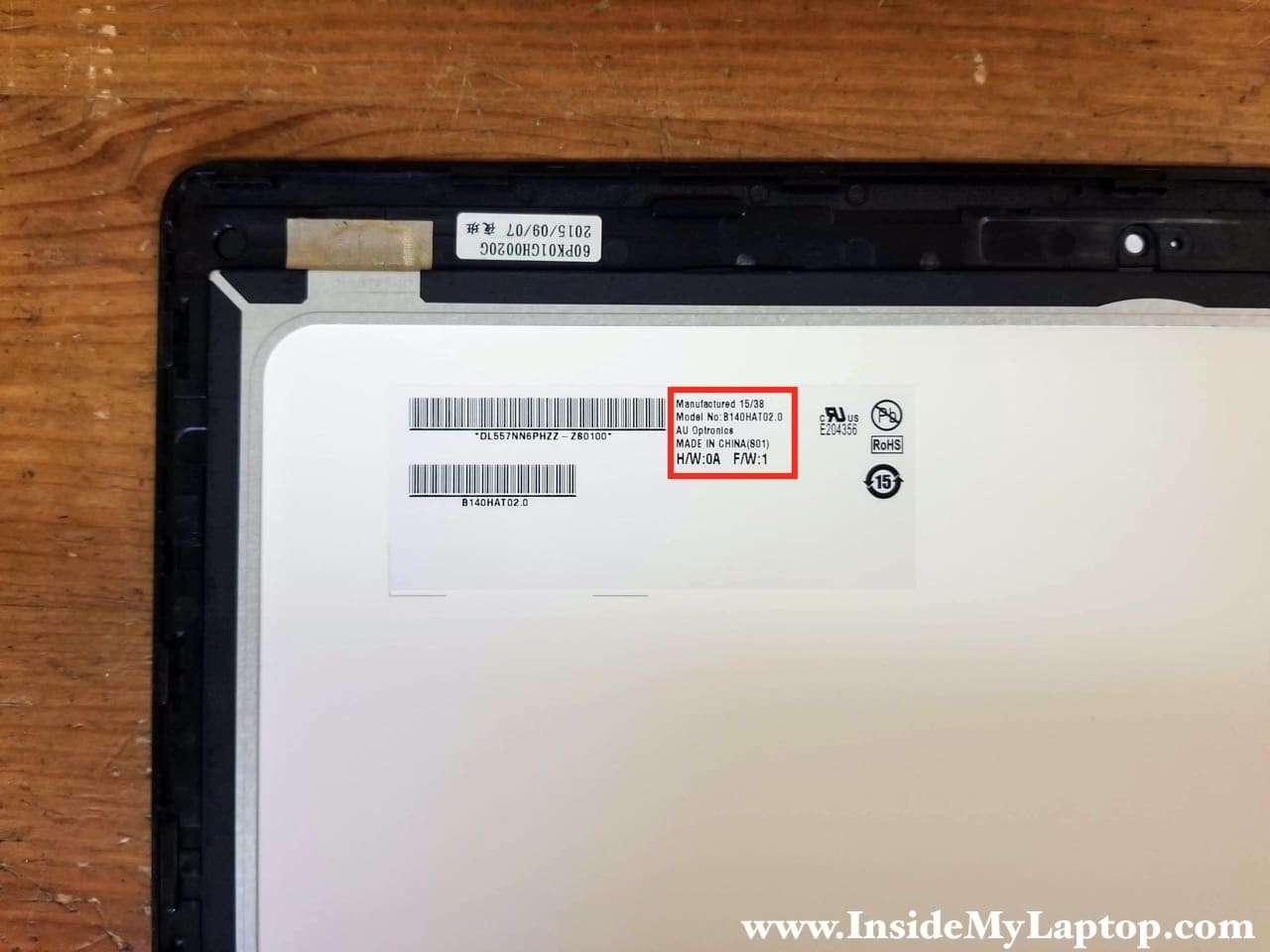

In order to find a replacement screen take a look at the model number on the original screen. The LCD screen permanently attached to the front bezel – it’s sold as one piece.

Acer Aspire R 14 (R5-471T-71W2) laptop has this screen installed: B140HAT02.0

Acer Aspire R 14 (R5-471T-71W2) laptop has this screen installed: B140HAT02.0

In the next guide I will walk you through the disassembly process of an Acer Aspire R 15 (R5-571TG-59VA) N16P2 laptop.
