In this guide I will disassemble a HP 530 Notebook PC and remove the top cover assembly. I’m replacing the top cover assembly because one of the touch pad buttons is broken. When you press on the button it feels loose and sometimes will not click. The plastic button is a part of the top cover and when it gets broken you have to replace the whole top cover.
In order to replace the top cover I will have to disassemble the whole notebook. I’ll be removing all internal parts including hard drive, keyboard, motherboard, cooling fan and other key components.
It’s possible that my guide will work for some other HP notebooks. If it works for you, please mention the notebook model in the comments below and help other people.
First of all, turn off the notebook and remove the battery.
STEP 1.
Remove the memory and hard drive covers from the bottom of the notebook.
You will find the wireless card under the memory cover.
STEP 2.
Remove one screw securing the CD/DVD optical drive. Push the drive from the laptop with a small screwdriver.
Remove the optical drive.
STEP 3.
Pull the hard drive assembly to the left to disconnect it from the motherboard. Remove the hard drive assembly.
STEP 4.
When you replace the top cover, you don’t have to remove memory modules and wireless card, but it’s necessary to disconnect the wireless card antenna cables from the card.
Disconnect both Wi-Fi antennas from the wireless card.
STEP 5.
Remove eleven (yellow) screws from the bottom of the notebook. These screws are securing the switch cover (power button cover).
Remove two (red) screws. These two screws securing the display panel assembly.
Remove two (orange) screws. These two screws securing the keyboard.
STEP 6.
Turn the laptop over and start removing the switch cover. If you cannot separate the cover from the base, you can use a piece of plastic (I’m using a guitar pick).
Insert the guitar pick between the switch cover and base and carefully lift up the cover. Continue removing the cover with your fingers.
The switch cover has been removed.
STEP 7.
You removed two screws securing the keyboard in the step 5. Now you can lift up the keyboard from the base.
Place the keyboard so you can access the cable connector underneath.
In order to unlock the connector, you’ll have to move the brown locking clip towards the display panel. Move it about 2-3 millimeters, not more. The locking clip must stay attached to the connector base.
Now you can release the keyboard cable and remove the keyboard.
WARNING! If you break the keyboard connector, you’ll have to replace the motherboard.
Need a replacement keyboard for HP 530 notebook? Find a new keyboard here.
STEP 8.
Disconnect the video cable from the motherboard.
Pull the wireless antenna cable through the hole in the motherboard. You disconnected these cables from the wireless card in the step 4.
Remove two screw securing the display panel hinges. You removed two more screws securing the display panel in the step 5.
Remove the display panel assembly from the notebook base.
You can find the LCD screen removal instruction in the official service guide for HP 530 notebooks. Take a look on the page 49.
Search here for new LCD screens.
STEP 9.
Disconnect the switch board cable from the motherboard. Unlock the connector the same way as you unlocked the keyboard connector in the step 7.
Remove one screw securing the switch board.
Remove the switch board.
STEP 10.
Remove all remaining screws from the bottom.
STEP 11.
Disconnect the touch pad cable from the motherboard.
STEP 12.
Start separating the top cover from the notebook base.
Continue separating the top cover from the base.
By the way, in a HP 530 notebook PC the motherboard is attached to the top cover, not to the base assembly as a most other notebooks.
Remove the base cover.
STEP 13.
The base cover has been removed.
Now you can access and replace the RTC (CMOS) battery if needed.
STEP 14.
Remove one screw securing the cooling fan.
Disconnect the cooling fan cable from the motherboard.
Remove the cooling fan.
Here are replacement cooling fans.
STEP 15.
Loosen four screws securing the heat sink.
Remove the heat sink.
In my laptop the heat sink was clogged with dust and needed a good cleaning.
After the heat sink is removed, you can access and remove the processor (CPU) if needed. I’ll leave the processor attached to the motherboard.
STEP 16.
Disconnect the speaker cable.
Remove one screw securing the motherboard to the top cover.

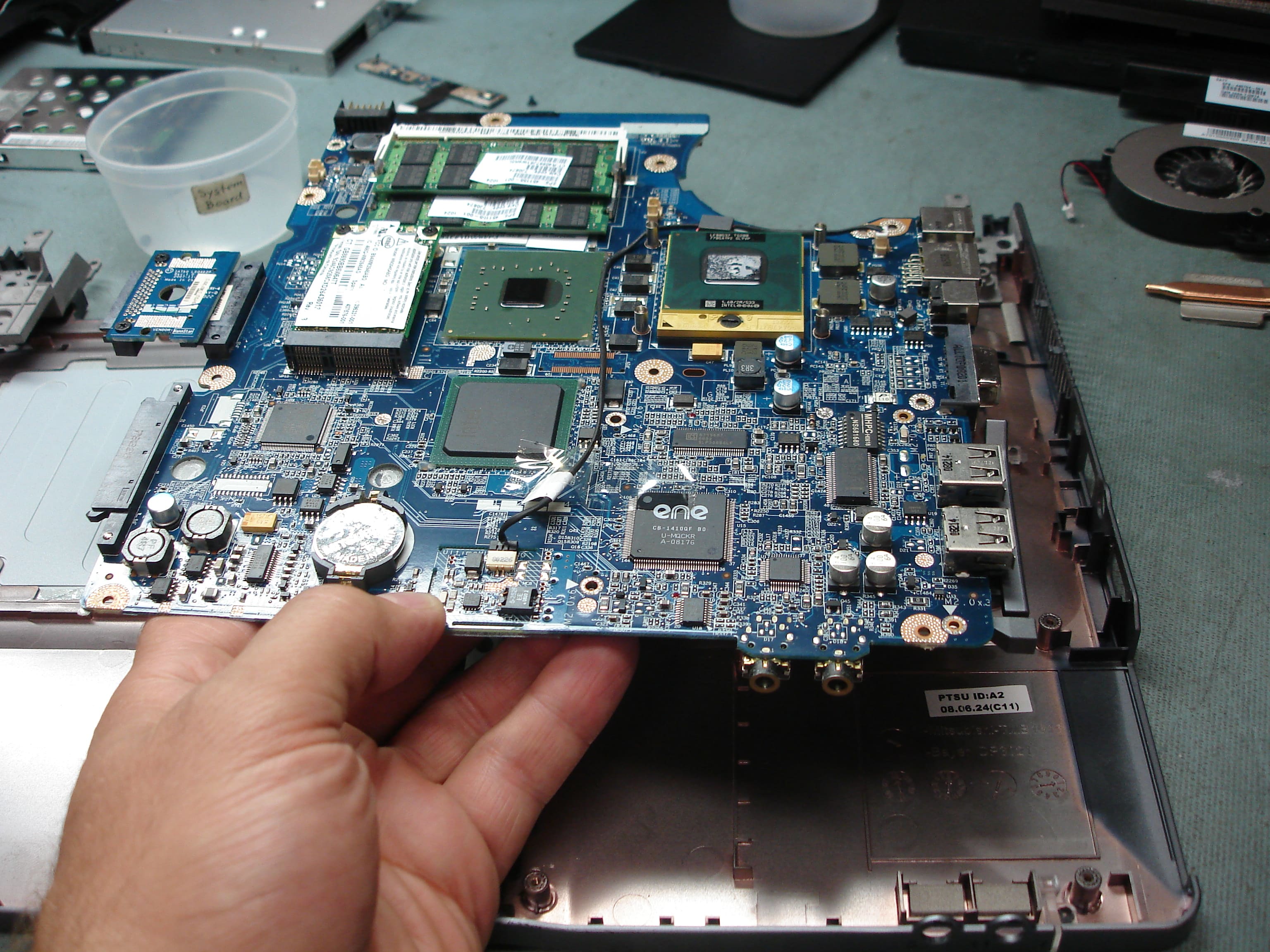

Start removing the motherboard from the top cover.
The motherboard has been removed.
STEP 17.
The touch pad is attached to the top cover and secured by a metal bracket. I’m not removing the touch pad because when you buy a new top cover it comes with the cover.
Now you can replace the top cover assembly with a new one.
You can find a new top cover assembly (with touch pad) using the HP spare number. In my notebook the part number is 441626-001.
I think you can use the same top cover for all HP 530 Notebook PCs.
You can find a new or used top cover assembly here.

If you find this article useful, please consider making a donation to the author. Thank you!
August 16th, 2009 at 7:36 pm
Very clear instructions! 5 keys on my keyboad failed about 3 months ago and I’ve been using my laptop with an external keyboard since then. It’s such a pain! Now I can replace the keyboard and it’s not as expensive as I thought. Ordering a new keybord tonight. Thanks for this guide!
August 22nd, 2009 at 10:16 am
wow.. very clear instructions!!
Thank you!
August 26th, 2009 at 7:30 am
Many many thanks to you b,coz i want this particular model’s disassembly.It is in detail and easy to understand
September 1st, 2009 at 12:30 am
Is it possible to remove/replace CPU on this model or is it soldered?
September 4th, 2009 at 6:49 am
Aweasome! I have one of this.
Thx
September 6th, 2009 at 2:33 am
Thankx a million for the great guide!
I tried cleaning my cooling fan and it got jammed.
I followed your disassembling guide and removed the cooling fan. The dust balls had jammed the propellers, I cleaned it up, replaced it back, followed the guide backwards to put everything into place. Turned my laptop on, and voila!
Thankx again for the great and simple guide!
September 10th, 2009 at 10:16 pm
Zed, the CPU is in a socket. All you should have to do is turn the lock with a flat blade screw driver and it will pop right out. Replacing my fan tomorrow and probably ordering a keyboard soon.
September 13th, 2009 at 7:53 pm
I need to change the screen it(he,she) unites hp 530 since they left her to fall down and one broke only that in Internet I find a standard screen and the plastic part not to be disarmed to see if it is the same type of screen if you could help me I am grateful for it to you. He(she) forgives if he(she) does not understand himself(herself) very much but I speak Spanish and am using a translator in line.
September 14th, 2009 at 8:21 am
wow.. very clear instructions!!
Thank you!
September 16th, 2009 at 11:43 am
Thanks a lot Dude!
I managed to get to the cooler fan, clean and grease it.
I also replaced the heat conductor between the processor and the heatsink.
Thanks to your instructions it took me a little over half an hour
Thanks a million!
September 16th, 2009 at 3:10 pm
Andrew, could you please help me to know where to order a replacement keyboard for the HP530. I do have the same problem than your but haven’t been able to find the keyboard. Thank you.
September 19th, 2009 at 12:51 pm
To Omable (comment 11).
I bought a new keyboard through the link in the step 7. Still works great!
September 19th, 2009 at 2:54 pm
Abner castañeda,
I guess you need to change the LCD screen?
Follow instructions in this service manual for HP 530 notebook. Take a look at the page 49.
September 28th, 2009 at 3:02 am
I have an HP510 and the left touchpad button no longer works. It does not feel like the button is broken like your description as it still ‘clicks’ when you press it but nothing happens. Will replacing the top cover resolve this issue in your optinion or is the problem elsewhere?
October 3rd, 2009 at 1:58 pm
Hey, thanks for posting this! I used it to replace my HP 530’s screen and upgrade the processor from a Celeron 520 to a T5300 (533FSB / Intel 945GME chipset, bios v.06). It’s loads faster!
October 24th, 2009 at 3:51 pm
Thanks
This was very helpfull
Glenn
Netherlands
October 31st, 2009 at 6:03 am
A great detailled manual. I used it for dismantling my HP510 and for 99% usefull!!!
For those who use this manual for their HP510 please remove 2 small screws at the position of the cd-drive to remove the cover.
Removing the motherboard also an extra screw has to be removed located at the corner between the usb connectors and microfoon/headphone connectors.
This manual is a perfect guide.
With great compliments and thanks for all the clear pictures.
November 8th, 2009 at 3:46 pm
I have some power problems. I am not shure is it a conector in lap top or a cable nere the conector… Now i need to finde a specific position wen i put a charging cable in to a lap top… Plese HELP ME……. Goran
November 19th, 2009 at 12:09 am
This has been very helpful and I’m grateful for the resource. I would lyk 2 know how 2 reset the setup password on a hp 530 I’m working on. I’m referring to the motherboard setup that is accessed by hitting f10 during startup. I’v tried removing the rtc battery but the system’s stil demanding for a password. Pls I need help on this urgently & would b thankful for any assistance with this problem.
December 5th, 2009 at 8:52 am
Great, very helpful. Thank you!!!
December 23rd, 2009 at 11:04 pm
very useful information, thank you…
December 30th, 2009 at 11:12 am
Very very useful information!
Cleaning the Laptop has become a piece of cake! Thanks!!
January 8th, 2010 at 3:07 am
Thnx a lot dude!
January 19th, 2010 at 10:26 am
Many many thanks. a very useful guide.
January 25th, 2010 at 11:56 am
Really helpful man, nice work and thanks! : )
February 3rd, 2010 at 1:58 pm
Trying to find help with this issue…. have hp 530 … the screen doesnt look damaged… 5/6ths of the screen work… yet there is a blank space to the very right. just unused… tried all hp support/ updated drivers .. etc… but still this exists.. when looking at buying a new screen I noticed that the guide said you may not need to replace… im really confused on this please help if you can????
February 9th, 2010 at 12:02 pm
rik,
Can you provide a better description?
Does the image look compressed and you can see the entire desktop on the working part of the screen, or the black stripe covers part of the image?
This problem appears only in Windows you you get it even in the BIOS menu?
February 10th, 2010 at 8:46 pm
Hi
Really you done a great job here. All the instructions are crystal. I have some problem with my laptop (HP 530).
Problem is Ctrl & fn key in left side, switched their functionality itself. For an example, if i want to copy any text, now im using fn+c instead of ctrl+c.
Could you please provide me a good solution.
Many thanks in advance.
February 10th, 2010 at 9:30 pm
Ganesh,
Unfortunately, I think this is problem with the keyboard. Apparently traces inside the keyboard got shorted somehow. I think replacing the keyboard is the only solution.
Please correct me if I’m wrong.
February 24th, 2010 at 2:24 pm
Hi this works for the hp 510 great!
Although since repacing the screen i cant get the wireless to connect to a network, it see them but doesnt connect even with the security keys…
Also the sound no longer works any ideas where the speaker connect ?
February 24th, 2010 at 2:33 pm
Mark,
Did you connect Wi-Fi card antenna cables shown in the step 4?
I pointed to the speaker cable in the step 16. Take a look at the yellow arrow.
March 27th, 2010 at 3:28 am
Hi there,
Thank you for the very informative guide, my HP 530 gave up living a while ago and I fear I cannot fix it.
I tried having a look inside with the help of your guide but now I have it open and don’t know where the problem lies.
It starts here: one day during normal usage of my laptop it just cut out, turned itself off for no reason. Power was still plugged in etc. When I turned it on the charge light came on and it worked fine for a minute or two then powered down again.
A few tries after that showed a charge light but it only lasted for short bursts before dying again.
Now there is no charge light and not a sogn of life out of it at all, when inspecting the insides I found the fan to be a little clogged and cleared it, will this simple process have resovled the issue or could I be dealing with something else?
Thanks for your time and input,
Ben.
March 31st, 2010 at 3:42 pm
Benjamin,
Maybe the AC power adapter died while the laptop was working? The laptop worked until the battery discharged and turned off.
Can you test the AC adapter?
April 2nd, 2010 at 6:03 am
Hi!
I have a hp530, it’s almost the same as the one u have…
but I have a little problem, the god damn laptop won’t start. The “power” / “battery charging” light just blinks 8 times. Can anyone help me?
April 2nd, 2010 at 3:29 pm
DjDraid,
It’s hard to tell what this error message means. Could be memory failure, video card failure, motherboard failure.
Try memory first. Do you have two memory modules installed? Remove them one by one. Test the laptop with each module in either slot.
April 9th, 2010 at 9:40 am
Hi, thank you for taking the time to make this informative post. I took apart my 530 for cleaning (surprising how much gunk there was on the fan and the vent) thanks to your guide.
I must have rushed the reassembly though, as I ended up with two tiny screws left (different from all the others) :-S No idea where they belong. (I didn’t take the computer all the way apart like you did, either.) Everything seems to be working nonetheless, so I’ll stow them aside.
Cheers.
April 13th, 2010 at 2:09 pm
Hi, thanks for the fantastic guide. My problem is my HP530 has no sound from the headphone socket. It had a broken off headphone plug in it when I purchased it from a friend, and he had tried to pick it out, and damaged the old socket in the process. After my first attempt I ended up with no more speaker sound at all but left side headphone working. I took the motherboard to a local tech who replaced the socket for me, but still no sound from headphones, but now speakers work again on laptop. I need headphones working on both sides. I’m wondering if a microscopic resistor or cap has been lost during the socket change-over.
Could someone please post or email me a macro close up of the motherboard in the sound socket area so I can compare the layout of the micro components. This might be very helpful…thanks. George S.
April 13th, 2010 at 2:32 pm
Hi again,
my laptop had the same power fault as Ben’s. The solder-through plate from the power in socket -pin had fractured right through at the base where it goes into the motherboard.
It was not hard to repair. I just removed the old broken off end of the plate by de-soldering it, pulling it out, and then bridged the back of the plate to the motherboard with the wire.
Now, if I could just get my headphone sound working.
Cheers…George S.
April 13th, 2010 at 6:38 pm
George,
Here’s the best image I have.
http://www.insidemylaptop.com/images/HP-530-Notebook-PC/mobo.jpg
April 20th, 2010 at 4:59 am
Hi, I have a question, I have a bluetooth that I removed from my friend’s hp6720s. Can i put it in my hp530 T2400? Is there a place for that in my hp base?
June 4th, 2010 at 5:31 am
hi,
Thanks for this tutorial; it came in extremely handy when I had to fit a replacement keyboard to my girlfriends Hp530. Which also may have saved me having to buy a replacement laptop.
Thanks again!
ps
I didn’t remove the wireless connections as I didn’t see how it would affect keyboard removal. Having tested it just now everything seems ok.
June 4th, 2010 at 7:14 am
My wife has an Hp530 which has just started to overheat and powerdown. The machine is 2 years old and we live in a very dust enviroment in southern Spain; is there an easy way to clean the fan and filters? I am technically competent but the disassembly process seems daunting and if I were to bugger it up my life wouldn’t be worth a sou. Thanks in anticipation
June 6th, 2010 at 12:55 pm
This article helped me remove a jammed CD on my HP 550 laptop, by showing me how to remove the DVD drive. Unfortunately, it appears it is the drive itself that has the problem.
June 6th, 2010 at 8:15 pm
Mike Moorcroft,
Yes, there is an easy way.
Find an air compressor and blow air into the fan grill on the bottom of the laptop until all dust gone.
June 16th, 2010 at 6:16 pm
hi, do u know where I can buy H530 casing? also LCD replacement part. Thank you
June 23rd, 2010 at 5:19 am
Hello, I have this exact model and I plan to upgrade CPU. Do you know the compatibility of this motherboard? Can you send me high def picture of cpu, so I can check version?
Thanks!
June 28th, 2010 at 11:31 am
Please de F1 key from my hp550 fell off the keyboard i have 2 pieces of plastic but dont know how to put it back, need to know which pieces are connected to the key and into the keyboard, please please help me with this..
June 28th, 2010 at 1:08 pm
Mitch,
Check it out: http://www.laptoprepair101.com/laptop/2007/03/20/key-fell-off-keyboard/
July 12th, 2010 at 7:54 pm
Hi I uprgaded this laptop’s memory and now the screen won’t turn on
Even when I switched back to the 512 the screen stayed blank. Basically the fan in turning on, but nothing else is. Is there anything I can do?
July 12th, 2010 at 9:04 pm
Jay,
Make sure the memory modules are seated properly. Most likely you just didn’t install them correctly.
July 13th, 2010 at 12:51 pm
I have the Hp530 and the laptop fan started to make noise. I was kind of afraid to do the whole process of taking the cooling fan out but i managed to take the keyboard out and from there I just used a brush and cleaned it out a little. After that I put it back together and vacuumed the cooling fan from the bottom of the laptop. After starting the laptop after half an hour, I noticed that the fan wasn’t spinning.
I was wondering if I should just replace it or is there a way to fix it?
July 14th, 2010 at 2:32 pm
@Alex #29
remove the dvd drive and you should see where those two little screws go
July 14th, 2010 at 2:35 pm
@ganesh #28
there’s a bios option that switches the fn and ctl keys. press f10 while booting
July 20th, 2010 at 9:02 am
I have HP 530 Laptop. From few days back I am experiencing a thin white colored vertical line on right hand side of my laptop screen…. I have tried to re-installing video driver and also cleaned up the screen very well but the line has still remain there….I dont know what should I do now. Please suggest me any solution and also an idea of replacing cost of the screen. I am from New Delhi. Waiting for your valuable response….
July 22nd, 2010 at 10:54 am
Asish,
Most likely this is LCD screen failure. You’ll have to replace the screen.
July 27th, 2010 at 10:05 am
Thank you very much for your help
I have a hp 530 and by following your indications I could clean the fan (which was really dearty) and now the computer is not making noise (silent at long last!)
Thanks very much
July 31st, 2010 at 3:25 am
I really can’t thank you enough. you are the man. I disassembled my notebook to clean clogged fan, and it was exactly as you mentioned. I got a problem though which is not related to the disassembling procedure, I have two banks of memory , one of them is not working anymore, do you have a clue what might be happening ?? is it a bad memory bank or what? to fix it, Do i need to replace the mother bored ? thanks
August 2nd, 2010 at 2:15 am
Hi there, great tutorial. Quick question. I took out the touchpad with the intention of wiring it to a ps/2 cable to use it as a modded touchpad for a desktop pc. I removed the touchpad from the top cover (it was glued or something) Does the glue serve a function with regards to proper functioning of the touchpad or is it just to hold it in place? Will i be able to go ahead with my mod? because all i see on the toufhpad now is the green board with criss-cross wires on the surface. Thanks a million.
August 4th, 2010 at 3:57 pm
Hello…
Do you have to removed all the screws and the display section just to remove the back cover to get to the fan ?? I cannot get the back cover off… please help !!
Your site is an excellent resource !
Thank you
Ed
August 5th, 2010 at 3:22 pm
Well…
I got the whole computer apart and the fan and heatsink cleaned out… the processor popped out attached to the heatsink so I left it attached and re-installed the heatsink and fan.
got everything back together no problem and powered it up… no display, not beep, power light on and a amber/orange charge light…. the Wifi blue light would not stay on either. I really screwed up…
Can you offer any advice on what to check before I take it to a repair center? I dis-assembled the whole thing again and checked the LCD connector and still the same problem.
A friend said I may have installed the processor wrong, but it just fit easily by lining up the heatsink screws, so I thought this would be ok. Also, I did not clean off any of the compound for the heatsink from the video processor or the CPU.
Please let me know what I can do next to trouble shoot/…. thank you
Ed
August 10th, 2010 at 9:56 am
Hi There.
I have a funny one. My HP 530 had a power supply on it that delivered 27 volts. The unit worked and charged and ran off the battery. Now it does not respond at all. I am sure that it should work at 19.9 volt. After getting a decent psu running at 19.9 volt the charger does not function and the unit does not run off the psu. I am a electronics tech. Where should I start looking for the faulty charge unit/regulator. I am able to replace the faulty chip or whatever it is that failed. Are you able to assist?
Thanking you in advance.
August 11th, 2010 at 3:21 pm
Hello Again,
I have the computer back to working order (somewhat)… figured out the CPU was not seated right from when I removed the heatsink, I just needed to twist the CPU a little after taking the heatsink off and it came loose easy enough.
Cleaned the heatsink and video processor with alcohol, correctly installed the CPU and everything came on line.
Worked for a while and then started shutting off like the way Ben described his problem, removed the battery thinking this was defective and it seemed to work for day or so without the battery installed and only hooked up to the adapter, then the computer started shutting off again after 10 minutes or so for no reason. The fan is running fine, not too much heat noticed, so I believe it is not overheating.
Would replacing the AC adapter be a solution? I fear it may be a broken socket like George S mentioned…. is this an easy and inexpensive fix for a good tech?
Thanks again for any help and or advice !
Ed
August 14th, 2010 at 10:50 am
Ed in PA,
The heat sink covers two chips, CPU and GPU. When you install the heat sink back in place, you have to make sure that there is thermal compound (thermal grease) on the CPU and thermal pad on the GPU. Do you have thermal grease and thermal pad on CPU and GPU? Maybe you accidentally removed thermal pad from the GPU? It looks like a blue square piece of chewing gum. Without thermal grease and thermal pad the laptop will shut down because of overheating.
August 14th, 2010 at 12:30 pm
Dries,
Sorry, cannot help. I don’t fix motherboards on component level.
Is your laptop completely dead? Maybe this failure is not related to the AC adapter at all? Have you tried replacing/reconnecting memory modules?
September 5th, 2010 at 10:26 am
thank you for this pages.
