How to disassemble Dell Inspiron 14z-N411z

posted in: 4. Dell | 9

Dell Inspiron 14z-N411z disassembly

In the following guide I show how to disassemble a Dell Inspiron 14z-N411z laptop.

You can use this guide for the following procedures:
– Accessing and removing the hard drive, RAM (memory) modules, optical drive.
– Disconnecting and removing/replacing the keyboard.
– Accessing the trackpad and power button board.
– Removing or cleaning the cooling fan.

Before you start the disassembly process make sure it’s turned off.

STEP 1.

Unlock and remove the battery.

Unlock and remove battery

STEP 2.

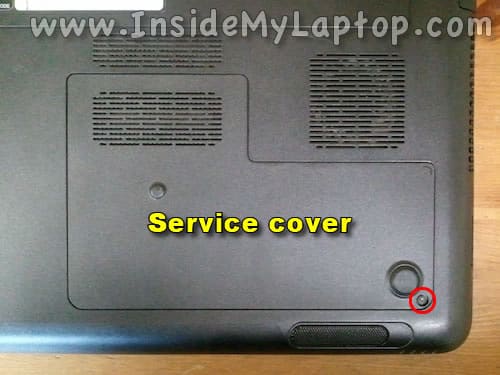

Remove one screw securing the service cover on the bottom.

Remove the service cover.

Remove service cover

STEP 3.

Under the service cover you can access:
– RAM (memory) module 1. Second memory module located under the keyboard and we’ll access in in the step 15.
– CMOS battery.
– Hard drive.

This laptop can take up to 8GB (2x4GB) DDR3-12800 SODIMM RAM modules.

I will leave the memory module and CMOS battery connected to the motherboard but show how to remove the hard drive.

Remove four screws securing the hard drive mounting bracket. Slide the hard drive to the right to disconnect from the motherboard.

Access hard drive, memory, CMOS battery

STEP 4.

Lift up and remove the hard drive.

Upgrading this 2.5″ hard drive to a 2.5″ SATA solid state drive will improve laptop performance significantly.

Remove hard drive

STEP 5.

Remove one screw securing the optical drive.

Slide the optical drive to the left and remove it.

Remove optical drive

STEP 6.

The keyboard secured to the top cover by four plastic knobs.

Keyboard secured

STEP 7.

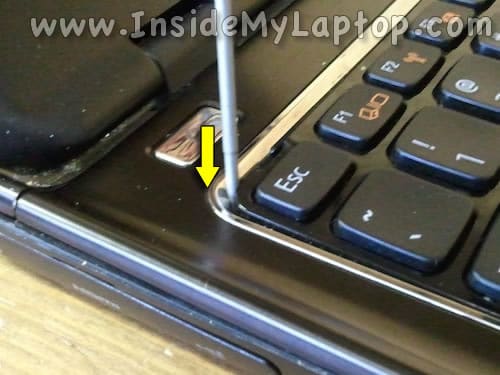

In order to separate the keyboard from the top cover insert a small flat head screwdriver (or knife blade) between the keyboard and top cover.

Insert screwdriver under keyboard

STEP 8.

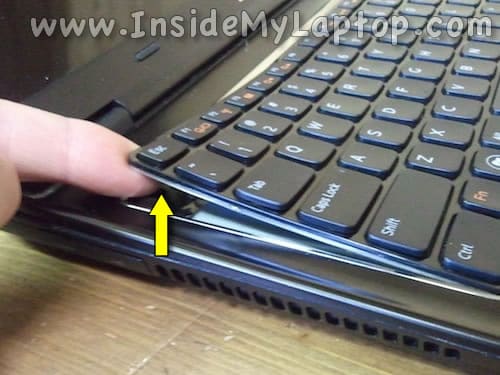

Carefully lift up the keyboard and push it though the first knob.

Lift up keyboard

STEP 9.

Continue separating the keyboard with your fingers.

Continue separating keyboard

STEP 10.

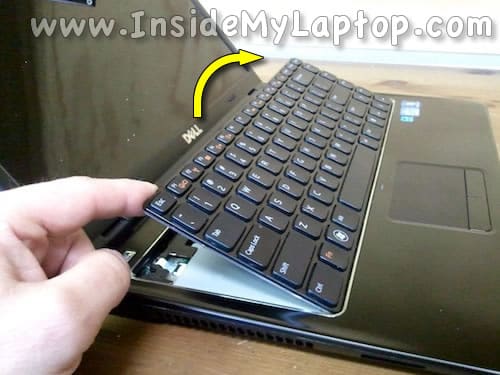

Lift up the top side of the keyboard.

Turn the keyboard upside down and place it on the palm rest.

Turn keyboard upside down

STEP 11.

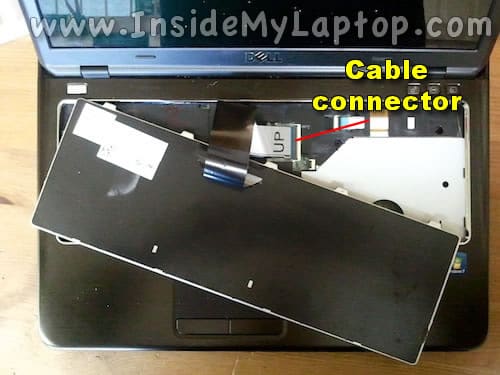

Now you can access the keyboard cable connector.

By the way, when you install the keyboard back into the laptop make sure the cable positioned correctly. There is “UP” sign on the cable.

Access keyboard cable connector

STEP 12.

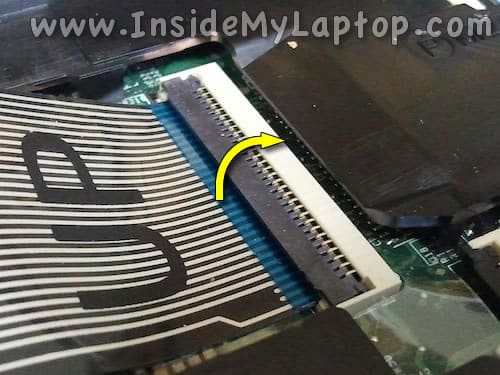

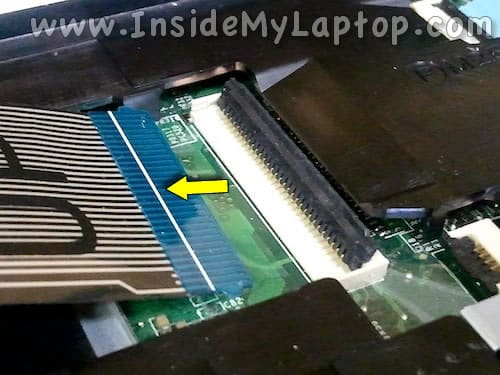

Unlock the connector by lifting up the left side of the retainer.

Unlock cable connector

STEP 13.

After the connector is unlocked, remove the cable from the connector.

Pull cable from connector

STEP 14.

Remove the keyboard. Replace it with a new one if necessary.

Remove keyboard

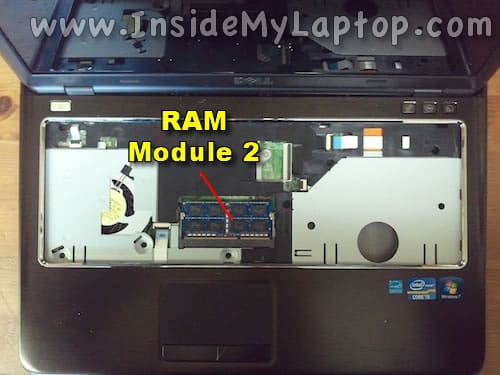

STEP 15.

The second memory module located under the keyboard.

Access second RAM module

STEP 16.

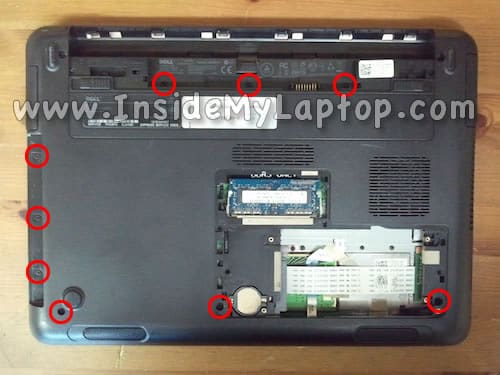

Remove screws from the bottom.

Remove screws from bottom

STEP 17.

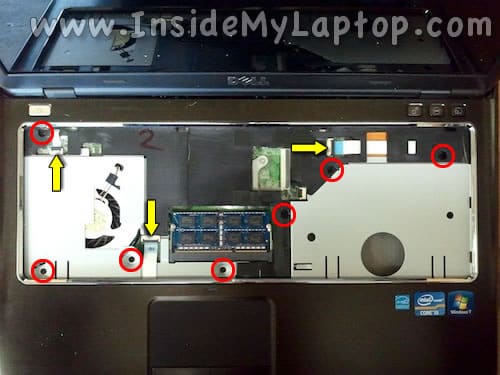

Remove screws securing the top cover assembly.

Disconnect the following cables (left to right):
– Power button board cable.
– Trackpad cable.
– Hot key board cable.

Use same technique as for disconnecting the keyboard cable.

Remove screws securing top cover

STEP 18.

Start separating the top cover assembly from the bottom cover. I’m using a guitar pick for that.

Separate top cover from bottom

STEP 19.

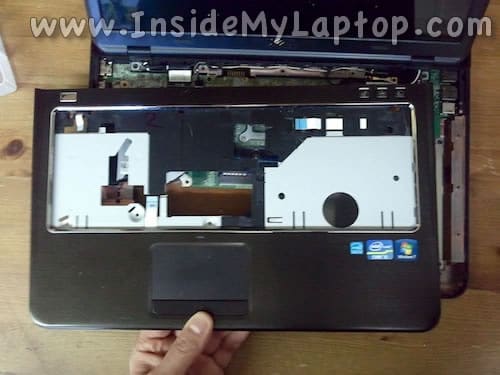

Remove the top cover assembly.

Remove top cover assembly

STEP 20.

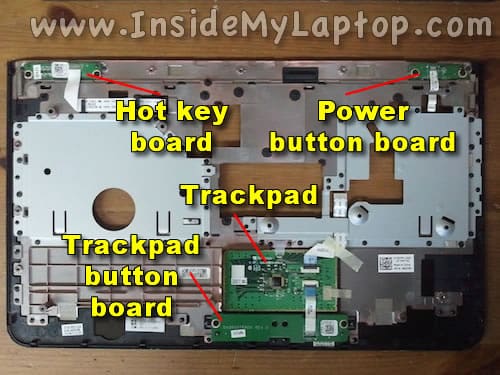

On the bottom side of the top cover you can access:
– Hot key board.
– Power button board.
– Trackpad.
– Trackpad button board.

Bottom side of top cover

STEP 21.

After the top cover removed you can access the cooling fan.

Top cover removed

STEP 22.

Remove one screw securing the cooling fan.

Unplug fan cable from the motherboard.

Disconnect cooling fan

STEP 23.

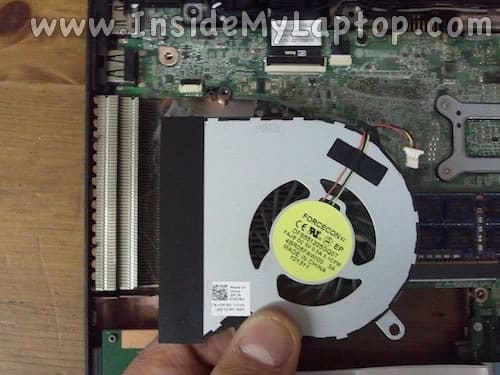

Remove the cooling fan.

Now you can replace the fan or clean up the heat sink.

Remove cooling fan
