In this guide I’ll be taking apart a Asus Eee PC 1201n netbook. I will show how to remove netbook memory modules, keyboard, top cover, hard drive, cooling fan and CMOS battery.
Most likely this guide will work for other Asus Eee 12XX netbooks. If it works for you, please mention the model number in comments after this post.
In this post I explain how to disassemble Asus K-series notebook and get access to main internal parts.
As an example I took a Asus K50IJ notebook. I believe disassembly steps will be same or very similar for all models in Asus K line.
Let me know if this guide works for your Asus notebook. Please mention the model number in comments below.
Make sure the laptop is turned off.
In this thread you’ll learn how to disassemble and modify an Asus Eee PC. I’ll be posting new instructions and guides as soon as I find them. If you find a new guide not mentioned in this thread feel free to leave a link in comments.
Guide 1. Taking apart Asus 701 and modifying the motherboard.
This guide will help you to take apart an older Asus Eee PC 701.
You’ll find instructions for:
1. Taking apart the laptop base and removing the motherboard.
2. Taking apart the display panel and accessing the LCD screen.
3. Modifying the motherboard by installing two extra USB ports in the area of unused MiniPCI slot.
Let’s say you have an Asus laptop and you are trying to install extra memory. You removed all covers from the bottom of the laptop but still cannot find memory slots. Where are they? Both memory slots are hidden under the keyboard!
In order to access them you’ll have to remove the keyboard. Take a look at this tutorial, it could be similar to your Asus laptop.
Also, you can use this instructions for removing and replacing the keyboard.
With this guide you can take apart and remove major components from Asus W3V, W3N, W3A, Z63A series laptop.

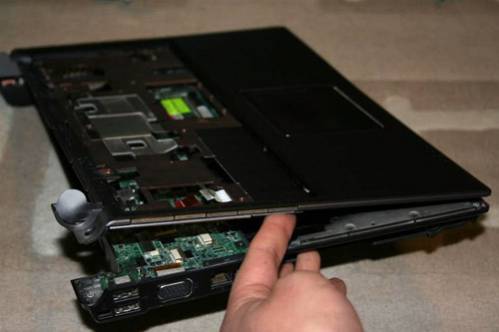

This guide is to show you how to take off the top case, which is the palm rest part of the keyboard along with the Touchpad and the Keyboard frame. Removal of this part will allow you to access the mainboard of the system for repair, replacement, or cleaning. This guide will show you how to dismantle the W3V with all the screw locations and procedure to properly take it apart without damaging any of the components, reversing this procedure will allow you to put this back all together.
Here’s another guide for Asus a8j series laptops. This guide explains how to remove and replace the laptop keyboard yourself.
Replacing a laptop keyboard isn’t difficult, if you know what you are doing. Most of the time, because laptops keyboards seem so well integrated, it is tough to get started without knowing where to start.
If you do everything right, replacing the keyboard will take only a few minutes and you definitely can do it yourself, without taking your laptop to a repair shop.
These disassembly pictures show how you can access an upgrade or replace main components in an Asus A6R laptop. Almost all main components can be easily accessed through the bottom of the laptop without taking the whole thing apart.
Before you go inside the laptop do not forget to unplug the power adapter and remove the battery. Let’s take a look at the laptop components you can remove yourself and possibly upgrade them:
I found instructions for taking apart an Asus L3800 or Asus L3C laptops. Apparently both models are the same or at lease very similar.
This guide has instructions for taking apart the whole laptop. You’ll need this one for accessing the wireless card, CPU cooling fan with the heatsink, dial up mode. Also, you can use it for removing the motherboard and replacing the power jack. By the way, if the power jack is loose you can use this tutorial for resoldering the jack yourself.
Read the rest of this entry »
Need instructions for replacing or upgrading the internal wireless card on an Asus M2400N notebook? Here it is. With this guide you’ll be able to remove the notebook keyboard and get down to the wireless card slot.
I used an Atheros Cardbus card for a while, using the madwifi driver, but the laptop has only one PCMCIA slot, and it was a bit of a pain to have it always occupied.
Now I have bought an Intel PRO/Wireless 2200BG mini-pci card, which I managed to insert into the laptop with not too much difficulty.
The display panel on your laptop feels wobbly? Apparently, the display hinges are loose and it’s time to tighten them up. On some laptops tightening up hinge screws is not difficult at all, let’s take for example instructions for this Asus A8j laptop.
In order to secure loose screws you’ll have to remove hinge covers and then remove the LCD bezel.
You first have to pry out the LCD bezel cover (this requires your fingernails a lot. Start from top and look at the whole LCD cover from the side. prying open from the outside seemed a lot easier than trying to open it from the inside like the guide told me to). Before that, you have to take the 6 rubber things off and unscrew the screws beneath those.
Here are instructions for removing the LCD bezel from Toshiba laptops, it will be similar to removing the bezel from Asus laptops.
Read the rest of this entry »
